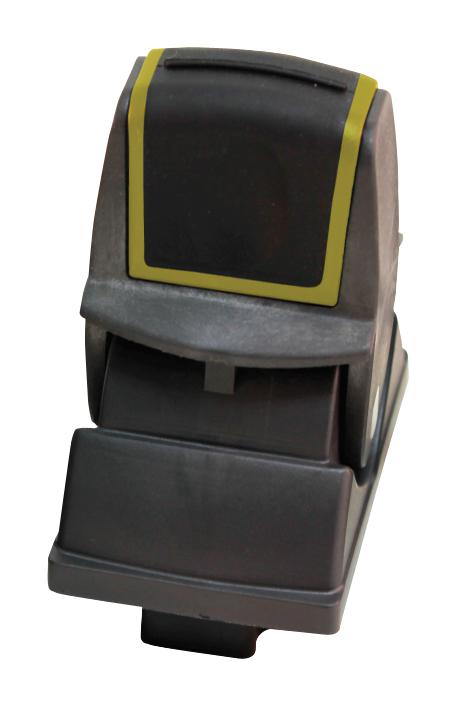

Grayhill 68B4054 Rocker Switch Joystick
The Grayhill 68B series rocker switch joystick is engineered for demanding environments, offering a robust solution for control applications. Its sealed design (IP67) ensures reliable operation even during actuation, while the ratiometric analog output provides precise control signals. The joystick's rugged construction and positive tactile feedback make it ideal for dash panels, armrests, hydraulic fluid flow control, engine speed control, heavy-duty industrial equipment, and remote control belly boxes. Available with various detent and latching options, as well as cable lengths and accent colors, the 68B series provides versatility for diverse integration needs.
Grayhill 68B4054 Rocker Switch Joystick Specifications:
- Operating Voltage: 5.0V ± 0.5V
- Absolute Maximum Voltage: -18 V min, +18 V max (t < 1 h)
- Operating Current: 15 mA typ., 20 mA, max.
- Output Voltage at Center Position: 50% VDD
- Output Voltage at Full Travel: 10% VDD or 90% VDD
- Output Voltage Tolerance: ± 3% VDD at full travel, ± 5% VDD at center position
- Output Current: 1 mA, max.
- Recommended Load: 10 K Ohm pull-down resistor
- Vibration: Meets MIL-STD-810G, Method 514.6, Procedure I
- Mechanical Shock: Meets MIL-STD 202, Method 213B Test Condition A
- Transit Drop: Meets MIL-STD-810G, Method 516.6, Procedure II
- Terminal Strength: 10 lbs. minimum
- Push-Out Force: 45 lbs. minimum
- Pull-Out Force: 45 lbs. minimum
- Paddle Impact: 0.5 lbs. weight dropped 3x from height of 0.3m
- Paddle Side-Load: 45 lbs. minimum
- Mounting Torque: 3-5 in-lbs recommended, 8 in-lbs maximum
- Return to Center Life: 2 million cycles minimum
- Detent Life: 200,000 cycles minimum
- Latching Life: 200,000 cycles minimum
- Friction Hold Life: 200,000 cycles minimum
- Seal: IP67 as mounted
- Altitude: Meets MIL-STD-810G, Method 500.4, Procedure I
- Thermal Shock: Meets MIL-STD-810G, Method 503.4, Procedure I
- Operating High Temperature: +85°C
- Operating Low Temperature: -40°C
- Storage High Temperature: +100°C
- Storage Low Temperature: -55°C
- Damp Heat Cycle: Meets IEC/EN 60068-2-38 Z/AD
- Humidity: Meets MIL-STD 202, Method 103B, 500 hours
- Solar Radiation: Meets ISO 4892-2, Method A, Cycle 1, 1000 hours
- Chemical Resistance: Meets IEC 600682-74
- Salt Fog: Meets MIL STD 810G
- Dielectric: Meets MIL-STD-202G, Method 301
- Insulation Resistance: Meets MIL-STD202G, Method 302
- Paddle Material: Thermoplastic with elastomer finger grip
- Cable Assembly: 22AWG stranded, tincoated copper wires in PVC insulation
- Connector Body: Thermoplastic
- Terminals: Nickel
- RoHS Compliant: Yes
