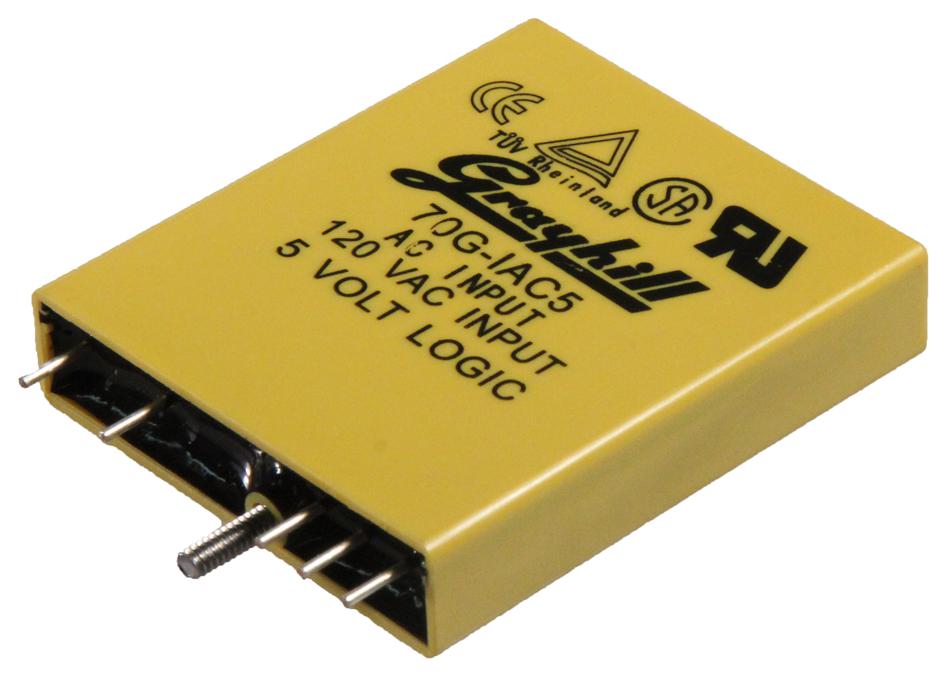

Grayhill 70GIAC5 AC Input Module
The 70G-IAC5 is an AC input module featuring a built-in status LED and optical isolation for enhanced safety. It includes transient protection, has a nominal input resistance of 22 kΩ, and operates with a logic voltage range of 4.5 to 6 VDC. Suitable for automation, process control, and industrial applications.
Grayhill 70GIAC5 AC Input Module Specifications:
- Output Current Range: 1-50 mA
- Minimum Output Breakdown Voltage: 50 V
- Maximum Turn-On Time: 20 ms
- Maximum Turn-Off Time: 20 ms
- Isolation Voltage: 4000 Vrms
- Storage Temperature Range: -40 to +125 °C
- Operating Temperature Range: -40 to +100 °C
- Nominal Input Voltage: 120 VAC
- Input Voltage Range: 90-140 VAC
- Input Current at Max Voltage: 8 mA
- Nominal Input Resistance: 22 KΩ
- Max. Pick-Up Voltage: 90 VAC
- Min. Drop-Out Voltage: 25 VAC
- Nominal Logic Voltage: 5 VDC
- Logic Voltage Range: 4.5-6 VDC
- Max. Logic Supply Current: 10 mA
- Warranty: Lifetime
Buy the Grayhill Series G5 AC Input Module: 70G-IAC5
Enhance your automation setup with the Grayhill 70G-IAC5 AC input module, featuring a built-in status LED and optical isolation for safety. It offers transient protection, a resistance of 22 kΩ, and operates with a 4.5 to 6 VDC logic voltage range, ensuring reliable signal switching in industrial environments. Its robust design accommodates a wide temperature range from -40°C to +100°C and is perfect for process control, industrial automation, and high-performance applications. Order online now for fast delivery and competitive pricing.
Buy Grayhill 70G-IAC5 now and experience unmatched reliability and performance with advanced optical isolation and transient protection.
Frequently Asked Questions
Where can I buy Grayhill 70GIAC5?
You can click on the BUY or RFQ button to purchase 70GIAC5 from an authorized Grayhill distributor.
How do I troubleshoot issues or seek technical support for part 70GIAC5?
You can download the 70GIAC5 datasheet or visit the Grayhill website for support.
Who is the manufacturer of 70GIAC5?
Grayhill
