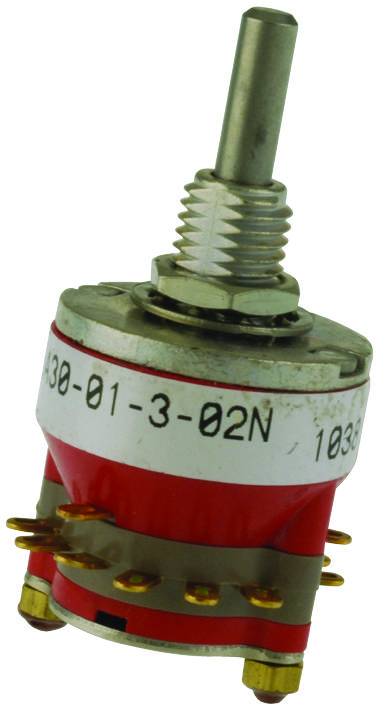

Grayhill 71A3001302N Multi-Deck Rotary Switch
Grayhill Series 71 rotary switch offers versatile multi-deck configurations with 30° and 36° throw angles, sealed or unsealed, suitable for military and industrial applications. Available in various shaft diameters and mounting options, these switches feature molded-in position terminals, optional adjustable stops, and sealed versions for enhanced durability. Designed for precise switching with high reliability, they meet MIL-S-3786/39 standards, providing long cycle life, high shock and vibration resistance, and exceptional environmental sealing. Ideal for control panels requiring compact, reliable rotary switching solutions with optional military-grade qualification.
Grayhill 71A3001302N Multi-Deck Rotary Switch Specifications:
- Diameter options: 0.125" (Styles AF, MAF, sealed) and 0.250" (Styles BF, MBF, sealed), 4mm (Styles EF, ESF, sealed).
- Voltage Rating: 600 VAC, 30 VDC, 250 mA for 20,000 cycles.
- Angles of Throw: 30° and 36° with optional interposed spacer decks.
- Number of Decks: 1 to 6 (standard); up to 4 for concentric styles with dual switches.
- Operating Temperature: -65°C to +85°C for military versions, compatible with MIL-S-3786.
- Cycle Life: 15,000 to 25,000 cycles depending on load.
- Materials: Zinc die-cast bushing, stainless steel hardware, reinforced thermoplastic rotor, silver alloy contact.
- Sealing: O-ring shaft seal, panel seal washer, with options for military waterproofing.
- Hardware: Brass or steel nuts, non-turn washers supplied, mounting studs with additional length for heavy-duty applications.
- Certification: Meets MIL-S-3786/39, with options for sealed and unsealed variants, extensive environmental resistance.
Buy the Grayhill Series 71 Rotary Switch: 71A3001302N
Order Grayhill Series 71 rotary switch online today and benefit from high durability, precise control, MIL-spec qualification, and versatile options including sealed or unsealed configurations. Designed for compact control panels, these switches ensure long-lasting performance under harsh environments. With multiple decks, adjustable stops, and various shaft sizes, they deliver reliable operation for industrial, military, and demanding automation systems. Secure your control needs with a proven, high-quality rotary switch designed to meet rigorous standards and provide extended cycle life, ensuring seamless operation in critical applications.
Buy Grayhill Series 71 rotary switch with multiple decks and sealed options now and experience unmatched reliability and performance for demanding industrial and military applications.
Frequently Asked Questions
Where can I buy Grayhill 71A3001302N?
You can click on the BUY or RFQ button to purchase 71A3001302N from an authorized Grayhill distributor.
How do I troubleshoot issues or seek technical support for part 71A3001302N?
You can download the 71A3001302N datasheet or visit the Grayhill website for support.
Who is the manufacturer of 71A3001302N?
Grayhill
