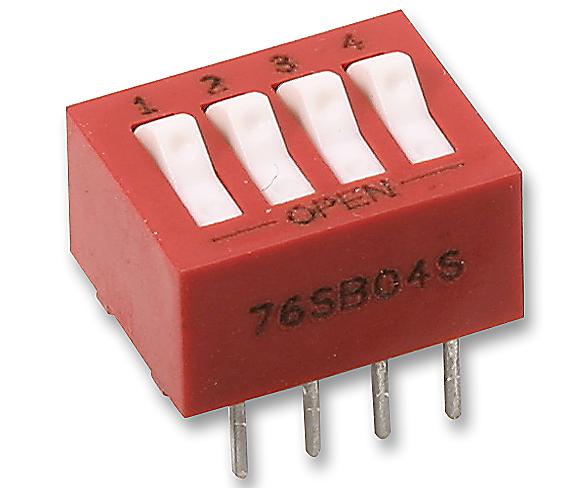

Grayhill 76SB04ST Sealed Rocker Switch
This high-quality SPST rocker switch from Grayhill's Series 76 offers reliable switching with sealed base standard, spring and ball contacts, and optional top tape seal. Designed for durability with a rated mechanical life of 2000 operations, it features multiple styles including raised and recessed rocker, and Piano-DIP configurations with either open or closed (ON/OFF) states. Its compact size ranges from 0.280 to 0.980 inches in length, and it supports up to 5 switching positions. Ideal for industrial controls, automation, and electronic devices seeking durable, sealed switching solutions.
Grayhill 76SB04ST Sealed Rocker Switch Specifications:
- Mechanical Life: 2000 operations per switch position
- Current Rating: 1 mA, 5 Vdc; 50 mA, 30 Vdc; 150 mA, 30 Vdc; 10 mA, 30 Vdc; 10 mA, 50 mVdc
- Contact Resistance: Initially <30mΩ, after life <30mΩ
- Insulation Resistance: >1000MΩ at 100 Vdc
- Dielectric Strength: 750 V AC initially; 500 V AC after life
- Current Carrying Capacity: 5A, 4A, 3A depending on style
- Switch Capacitance: 2pF at 1 MHz
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -55°C to +85°C
- Vibration Resistance: Meets Method 204, Test Condition B
- Mechanical Shock: Meets Method 213, Test Condition A
- Thermal Shock: No failures, passes contact resistance
- Terminal Strength: Meets specified standards
- Moisture Resistance: Meets MIL-STD-202, Method 106
- Solderability: Per MIL-STD-202, Method 208
- Resistance to Soldering Heat: Passes 6-second soldering test per MIL-S-83504
- Materials: Brass gold-plated, copper alloy, thermoplastic UL94V-0
- Potting: Epoxy (76,78 styles), Polycarbonate cover
- Finish: Gold-plated contacts, matte tin plated terminals
- Compliance: RoHS, MIL-STD-83504, MIL-STD-202
