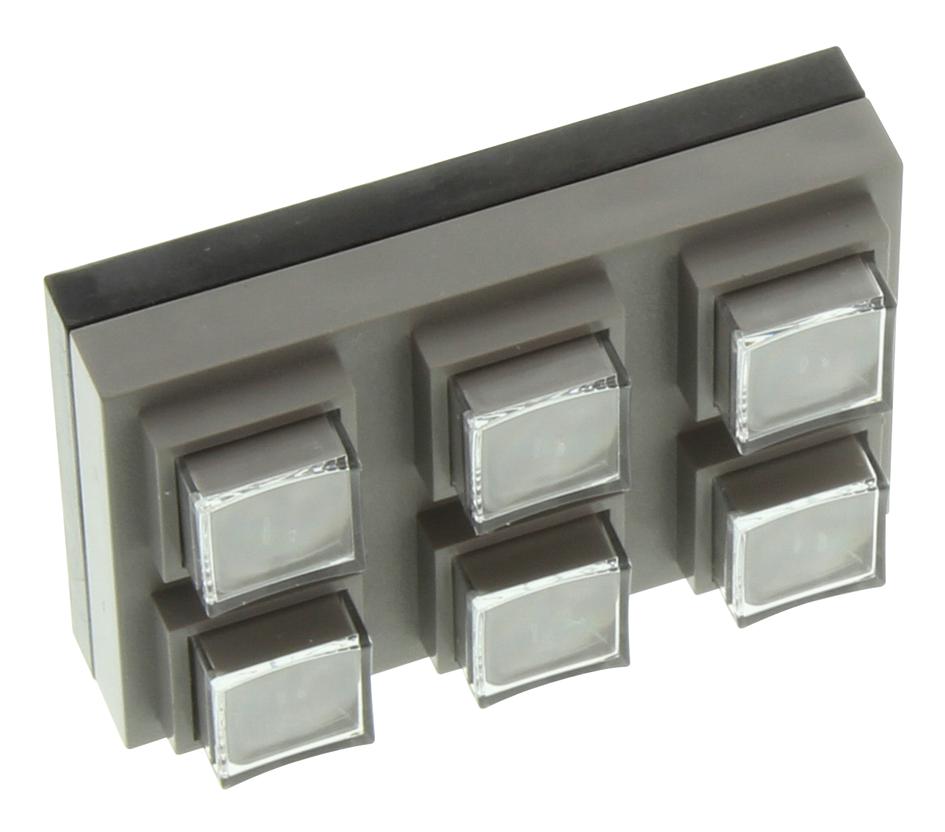

Grayhill 8260181 industrial control keypad
The Series 82 keypad is a reliable industrial control component featuring six momentary wiping contacts, available in unlit or lightable modules. Constructed with durable ABS housing and PPS base, it supports legend inserts and offers a total travel of 0.130 inches (3.30 mm). Capable of operating from -40°C to 80°C, it provides a contact resistance of 25 milliohms or less, and a voltage breakdown of 250 Vac. Suitable for various control panels, it ensures durability and flexibility with multiple circuitry options and legend styles.
Grayhill 8260181 industrial control keypad Specifications:
- Rating at 5 Vdc: 100 milliamps
- Contact Resistance: 25 milliohms or less
- Voltage Breakdown: 250Vac
- Insulation Resistance: 1,000 megaohms minimum
- Life Expectancy: 1,000,000 operations
- Operating Temperature: -40°C to 80°C
- Pin Contact Material: Brass, gold plate over nickel
- Housing Material: ABS plastic (gray)
- Base Material: PPS plastic
- Button Travel: 0.130" (3.30 mm)
- Action: Momentary, wiping contact
- Soldering Limit: Up to 260°C for 5 seconds
- Mechanical Dimensions: Refer to detailed technical drawings for cutout and mounting dimensions
Buy the Grayhill Series 82 Control Panel Keypad: 8260181
Purchase your Grayhill Series 82 keypad online today and benefit from its robust construction, flexible legend options, and high durability. Designed for industrial environments, it features six momentary wiping contacts, built with high-quality ABS housing and PPS base for long-lasting performance. Ideal for control panels, automation, and industrial machinery, this keypad supports various circuitry options and legend styles to suit your application. Experience easy installation and reliable operation—order now and improve your control solutions!
Order your Grayhill Series 82 keypad with six durable momentary contacts today and enhance your control systems with proven reliability.
Frequently Asked Questions
Where can I buy Grayhill 8260181?
You can click on the BUY or RFQ button to purchase 8260181 from an authorized Grayhill distributor.
How do I troubleshoot issues or seek technical support for part 8260181?
You can download the 8260181 datasheet or visit the Grayhill website for support.
Who is the manufacturer of 8260181?
Grayhill
