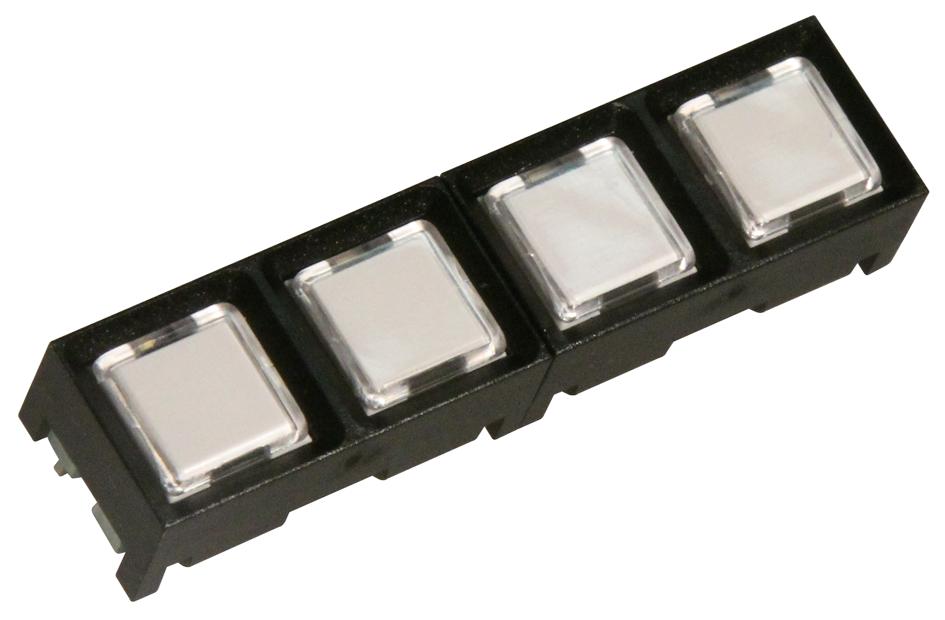

Grayhill 87FC3201 Switch Keypad
The 87FC3-201 is a 4x1 single-pole front panel-mount switch keypad designed for durability and ease of use, featuring insertable legends and a low profile. Made with a black ABS polycarbonate housing, white ABS plastic buttons, and a clear polycarbonate snap-on cap, it offers customizable labeling for versatile applications. The stainless steel contact domes, selectively gold-plated, ensure reliable operation, supporting MOS, TTL, and DTL compatible circuits. Ideal for industrial equipment, control systems, and electronic interfaces, it delivers long-lasting performance with a life expectancy of 3,000,000 operations per button.
Grayhill 87FC3201 Switch Keypad Specifications:
- Housing: ABS polycarbonate, black
- Buttons: ABS plastic, white, with black legends
- Snap-On-Cap: Clear polycarbonate
- Contact Dome: Stainless steel, selectively gold-plated
- Terminals: Phosphor bronze
- Rating at 24 Vdc: 10 milliamps, resistive
- Contact Resistance: Max 10 ohms
- Voltage Breakdown: 250 Vac between insulated parts
- Insulation Resistance: Minimum 1,000 megohms
- Life Expectancy: 3,000,000 operations per button
- Operating Temperature: -40°C to +80°C
- Operating Force: Approximately 300 grams
- Button Travel: 0.011 inches (0.28 mm)
- Mounting: Front panel, suitable for 1/2 inch to 1/4 inch thick panels
Buy the Grayhill Series 87 Switch Keypad: 87FC3-201
Order the Grayhill 87FC3-201 switch keypad online today for reliable operation and customizable legends. Designed with durable materials including a black ABS housing, white buttons, and gold-plated stainless steel contacts, this keypad offers excellent performance in industrial environments. Its compact, low profile design makes it suitable for front panel mounting on various electronic systems. Perfect for control applications requiring long life, flexibility, and high-quality labeling options, ensuring seamless integration and operational reliability in demanding settings.
Get Grayhill 87FC3-201 today—built for precision and long-lasting durability in industrial control panels.
Frequently Asked Questions
Where can I buy Grayhill 87FC3201?
You can click on the BUY or RFQ button to purchase 87FC3201 from an authorized Grayhill distributor.
How do I troubleshoot issues or seek technical support for part 87FC3201?
You can download the 87FC3201 datasheet or visit the Grayhill website for support.
Who is the manufacturer of 87FC3201?
Grayhill
