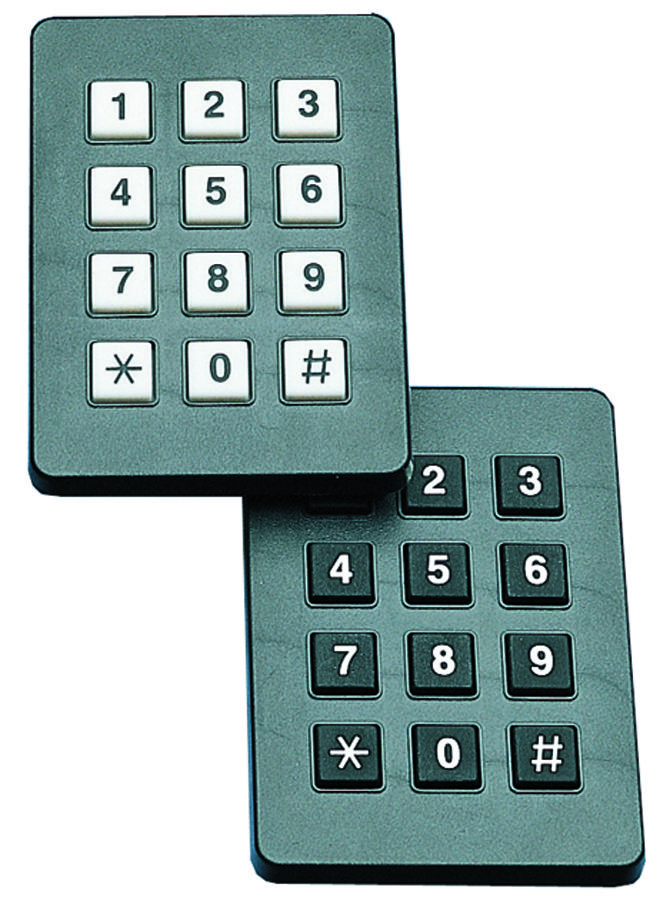

Grayhill 96AB2102R industrial keypad

The 96AB2-102-R is a 3x4 standard keypad designed for panel mounting. It features a white keypad with black legends, a silicone rubber keypad surface, and a durable ABS housing. The keypad employs conductive rubber contacts that connect to PCB traces, offering matrix circuitry with optional shielding and backlighting. Built with high-quality components and subjected to strict quality controls, this keypad provides reliable performance for industrial applications. It offers easy customization of legends, compatible termination with standard connectors, tactile feedback for the operator, and supports high-resistance logic inputs. The keypad is rated for up to 1,000,000 key presses per button.

Authorized Distributors
Source:DigiKey
Part No:96AB2-102-R
Stock:25
Inv Date:06-04-2026
Price: Unit price: $41.71
Buy/RFQ:
Part No:96AB2-102-R
Stock:0
Inv Date:06-05-2026
Price: Unit price: $36.45
Buy/RFQ:
Part No:96AB2-102-R
Stock:3
Inv Date:06-04-2026
Price: Unit price: $42.54
Buy/RFQ:
Part No:96AB2-102-R
Stock:0
Inv Date:06-04-2026
Price: Unit price: $31.57
Buy/RFQ:
Part No:96AB2-102-R
Stock:0
Inv Date:06-04-2026
Price: Unit price: $31.57
Buy/RFQ:
Part No:96AB2-102-R
Stock:0
Inv Date:06-04-2026
Price: Unit price: $25.13
Buy/RFQ:

Grayhill 96AB2102R industrial keypad Specifications:

  • Contact Resistance: < 300 milliohms max.
  • Operating Force: 175 + 40 grams
  • Mechanical Operation Life: 1,000,000 operations per key
  • Operating Temperature: -30°C to +80°C
  • Material: Silicone rubber keypad, ABS housing, phosphor bronze terminal pins
  • Housing Color: Black
  • Voltage at 12 Vdc: 5 milliamps for 0.5 seconds
  • Contact Bounce: < 12 milliseconds
  • Insulation Resistance: > 10^10 ohms @ 500 Vdc
  • Push Out Force Per Pin: 5 lbs.
  • Shielding Effectiveness: Up to 66.2 dB at 0.4 MHz, 37.0 dB at 18 MHz
  • Dimensions: 3x4 layout, panel cutout approx. 0.81 in (20.54 mm) high, 2.70 in (68.58 mm) wide, with mounting holes 0.095 in (2.41 mm) diameter

Buy the Grayhill 96AB2-102-R – Reliable 3x4 Keypad for Industrial Applications

Purchase your Grayhill Series 96AB2-102-R industrial keypad online today to ensure reliable operation in demanding environments. Featuring a durable ABS housing, customizable legends, shielded and backlit options, and proven high resistance to wear, this keypad offers excellent tactile feedback and a lifespan of up to 1 million presses per button. Perfect for industrial controls, automation, and machinery, it guarantees lasting performance. Easily integrate with standard connectors, making installation quick and straightforward. Get the dependable quality your projects require by buying online now.

Order your Grayhill Series 96AB2-102-R keypad today and enhance your control systems with dependable, high-quality industrial keypads.

Frequently Asked Questions

Where can I buy Grayhill 96AB2102R?

You can click on the BUY or RFQ button to purchase 96AB2102R from an authorized Grayhill distributor.

How do I troubleshoot issues or seek technical support for part 96AB2102R?

You can download the 96AB2102R datasheet or visit the Grayhill website for support.

Who is the manufacturer of 96AB2102R?

Grayhill
