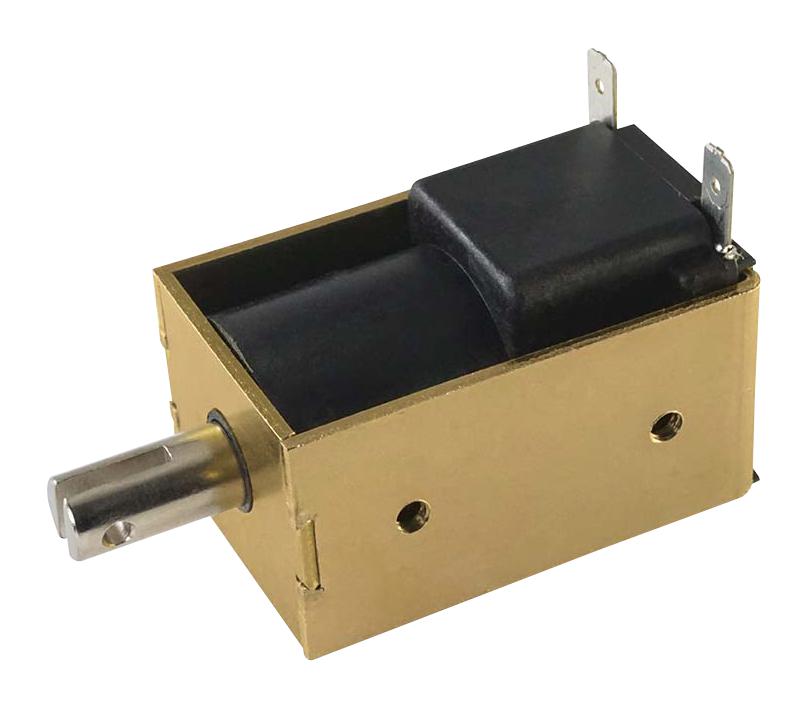

GUARDIAN ELECTRIC 11C24D DC Frame Solenoid
This DC frame solenoid features a compact design suitable for various DC and AC applications, with UL recognition and a plastic coil cover. It operates on voltages from 6VDC to 110VDC, offering 100% continuous duty and reliable performance with a lifespan of 1 million cycles. The solenoid includes a plunger with a diameter of 0.313 inches and mounting holes for easy installation. Its insulation class is rated at 105°C, ensuring durability in demanding environments, and it is characterized by efficient mechanical and electrical specifications for industrial use.
GUARDIAN ELECTRIC 11C24D DC Frame Solenoid Specifications:
- Size: 1.54 inches (L) x 1.62 inches (W) x 1.57 inches (H)
- Plunger Diameter: 0.313 inches
- Mounting: 4 - #6-32 holes
- Weight: Plunger 0.6 oz, Total 5.2 oz
- Electrical: Coil Voltages 6VDC, 12VDC, 24VDC, 48VDC, 110VDC; Termination: 3/16 inch QC terminals
- Duty Cycle: 100% Continuous, 25%, 10%, and Pulse options
- Insulation Class: H up to 180°C (356°F)
- Dielectric Strength: 1500V at 60 Hz
- Mechanical Life: 1 million cycles
- Operation Temperature: up to 105°C
- Force: varies with duty cycle and voltage, with calculated force values to be verified in application
Buy the Buy Guardian DC Frame Solenoid Part Number 11C24D Online
Purchase the Guardian DC Frame Solenoid 11C24D online to ensure seamless integration into your automation systems. With a compact design, versatile voltage options, and a lifespan of 1 million cycles, this high-quality solenoid offers dependable operation for various industrial applications. Its robust construction features a plastic coil cover, UL recognition, and insulation rated at 105°C, making it suitable for demanding environments. Buying online guarantees quick delivery, professional support, and access to custom configurations for your specific needs.
Buy Guardian DC Frame Solenoid 11C24D now and experience unmatched reliability and performance in industrial automation and control systems.
