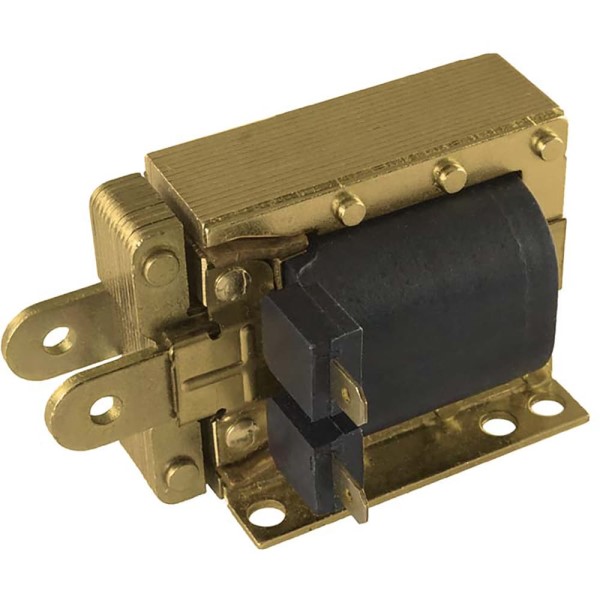

GUARDIAN ELECTRIC A42106414210 AC Laminated Solenoid
The Guardian Electric Model 16 AC Laminated Solenoid is designed for applications requiring robust and reliable actuation. It boasts a high stroke force and holding force, ensuring effective operation under varying load conditions. The solenoid incorporates a brass plunger guide for smooth and consistent movement, while the encapsulated coil provides enhanced protection and longevity. Available in standard voltages and customizable options, this solenoid is ideal for industrial automation, fluid control, and other demanding applications. Contact us for custom voltages or duty cycles to meet your specific requirements.
GUARDIAN ELECTRIC A42106414210 AC Laminated Solenoid Specifications:
- Coil Voltages: 120, 240 VAC standard
- Coil Termination: 3/16” Quick Connects
- Duty Cycle: 100% Continuous, 10% Intermittent
- Coil Treatment: Encapsulated, Tape Wrapped
- Insulation Class: Class A Rating - 105° C (221° F)
- Dielectric Strength: 1500V 60 Hz
- Size: 1.63” (L) x 1.22”(W) x 1.44”(H)
- Plunger Width: 0.42”
- Plunger Guide Material: Steel
- Mounting Holes: 6 .208” holes
- Weight: Plunger 2 oz, Total 9 oz
- Life Expectancy: 250,000 Cycles
- Typical Pull Force (Continuous) @ 20°C: 68 [18.9] Ounces [N] at 0.125 inch stroke
- Typical Pull Force (Intermittent) @ 20°C: 112 [31.1] Ounces [N] at 0.125 inch stroke
- Resistance (Ω): 85 (120VAC), 350 (240VAC)
- Power (VA): 20 (120VAC), 20 (240VAC)
Buy the A421-064142-10 GUARDIAN ELECTRIC AC Laminated Solenoid | myMectronic
Purchase the Guardian Electric A421-064142-10 AC Laminated Solenoid securely and efficiently online.
