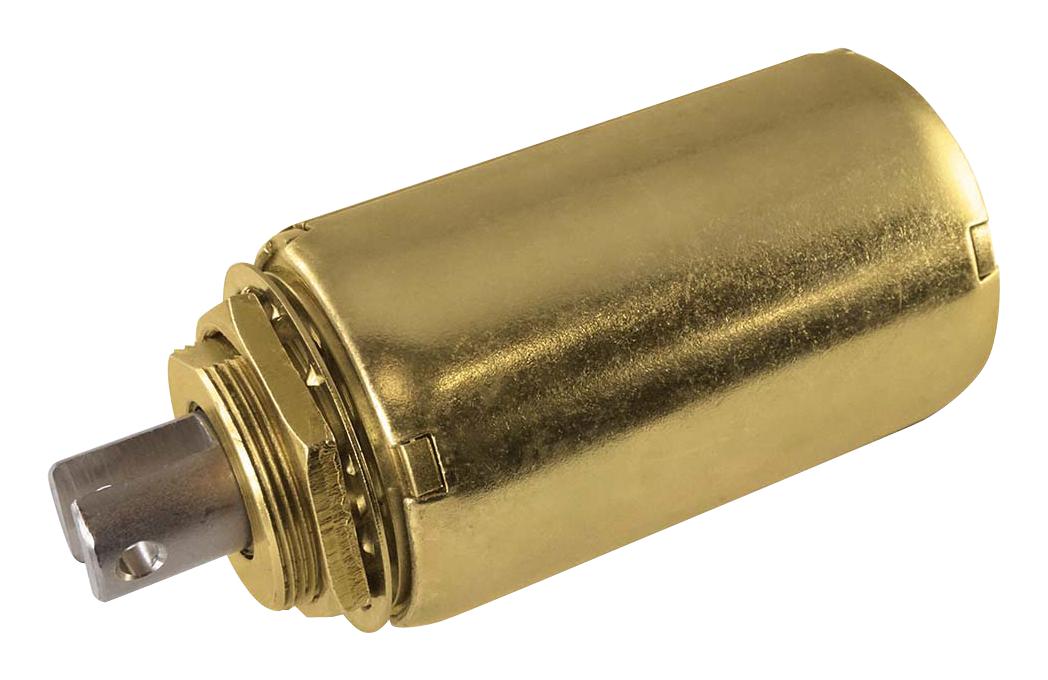

GUARDIAN ELECTRIC T12X19C24D Industrial Tube Solenoid
The T12X19-C-24D is a high-quality 12V DC tubular solenoid suitable for pull applications in industrial environments. It offers continuous operation with a power consumption of 7.8W and features a coil resistance of 68 ohms, making it reliable for long-term use. The solenoid mounts directly to a threaded bushing and comes with L-shaped brackets, hex nuts, and lock washers for secure installation. Designed to withstand demanding conditions, it ensures efficiency and durability in automation and manufacturing systems, with proper duty cycle management to prevent overheating.
GUARDIAN ELECTRIC T12X19C24D Industrial Tube Solenoid Specifications:
- Coil Voltage: 12VDC
- Power Consumption: 7.8W
- Coil Resistance: 68 ohms
- Mounting: Direct to threaded bushing with L-shaped brackets, hex nuts, and lock washers included
- Operation: Continuous duty operation
- Application: Industrial environments, automation systems
- Material: Metal housing with plastic plunger guide
- Dimensions: Length 2.38 inches, Diameter 1.5 inches
- Plunger Diameter: 0.5 inches
- Weight: Total 14.2 oz
- Life Expectancy: 1 million cycles
- Insulation Class: A (105°C), dielectric strength 1500V
- Duty Cycle: 100% continuous
- Operating temperature: Suitable for industrial conditions
Buy the Buy Guardian Tubular Solenoid Part Number T12X19C24D Online
Order the Guardian T12X19-C-24D tubular solenoid online today for reliable pull operation in industrial automation. Designed for continuous duty, it features a power use of 7.8W, coil resistance of 68 ohms, and includes essential mounting hardware. Perfect for demanding environments, this solenoid offers durability and long life, withstanding up to 1 million cycles. Easy to install and suitable for various industrial applications, ensuring efficiency and operational safety in manufacturing and automation systems.
Get Guardian T12X19-C-24D today—built for continuous operation and industrial durability.
Frequently Asked Questions
Where can I buy GUARDIAN ELECTRIC T12X19C24D?
You can click on the BUY or RFQ button to purchase T12X19C24D from an authorized GUARDIAN ELECTRIC distributor.
How do I troubleshoot issues or seek technical support for part T12X19C24D?
You can download the T12X19C24D datasheet or visit the GUARDIAN ELECTRIC website for support.
Who is the manufacturer of T12X19C24D?
GUARDIAN ELECTRIC
