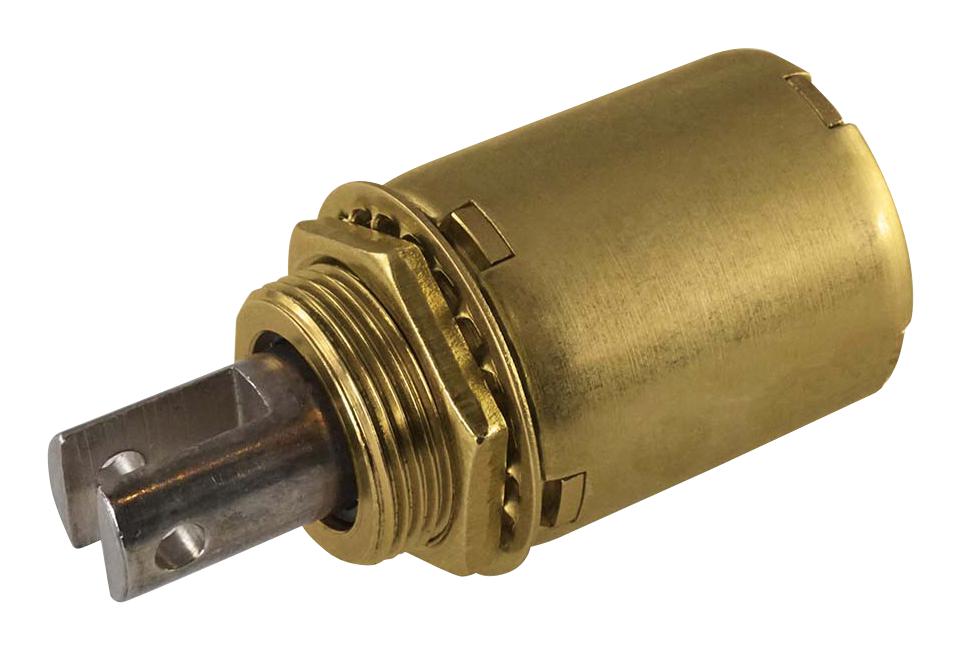

GUARDIAN ELECTRIC T8X9C24D DC Tubular Solenoid
The DC tubular solenoid T8x9 by Guardian is designed for reliable switching in industrial automation. Featuring high performance construction, UL recognition, and multiple voltage options including 6V, 12V, 24V, 48V, and 110VDC, it is suitable for continuous duty cycle applications. Its compact size measures 1.13 inches in length with a plunger diameter of 0.937 inches, mounted using a hex nut. The solenoid has a durability of 1 million cycles, with options for return spring kits and custom configurations such as plunger, lead, connector, and insulation systems up to class H 180°C. The solenoid is ideal for automation, control, and industrial machinery requiring precise and durable actuation.
GUARDIAN ELECTRIC T8X9C24D DC Tubular Solenoid Specifications:
- Size: 1.13 inches (L)
- Plunger Diameter: 0.937 inches
- Mounting: Hex Nut
- Weight: Plunger 1 oz, Total 3.5 oz
- Coil Voltages: 6V, 12V, 24V, 48V, 110VDC
- Coil Termination: 6.5-inch wire leads, 26 AWG
- Duty Cycle: 100% Continuous, 25%, 10%, 19% Pulse
- Coil Treatment: Tape Wrapped
- Insulation Class: Class A Rating - 105°C (221°F)
- Dielectric Strength: 1500V 60 Hz
- Material: Plastic plunger guide
- Durability: 1 million cycles
- Operation: DC only, UL recognized
- Additional features: return spring kit, custom configurations available
- Environmental resistance: insulated for high temperature up to 180°C
Buy the Guardian T8x9 – Reliable DC Solenoid for Industrial Applications
Upgrade your automation system with the Guardian T8x9 DC tubular solenoid, known for its long cycle life, high durability, and reliable switching capabilities. Perfect for industrial machinery, it offers multiple voltage options, UL recognition, and a compact design that fits various control applications. With customizable features like plunger, lead, connector, and insulation systems up to class H 180°C, it ensures optimal performance and adaptability. Buy online now to ensure your projects are equipped with dependable, professional-grade solenoid solutions.
Order your Guardian T8x9 DC solenoid today and enhance the performance of your automation projects with durable, high-quality control components.
