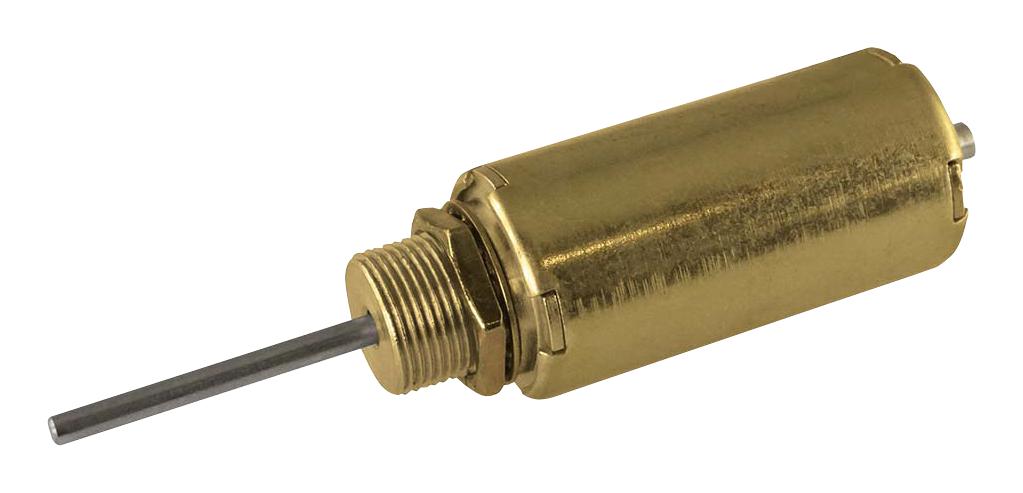

GUARDIAN ELECTRIC TP6X12C24D Tubular Solenoid
The TP6X12-C-24D is a high-performance, push-type DC tubular solenoid designed for continuous duty cycle operations, supporting reliable linear actuation in automation systems. It features a compact size of 1.54 inches in length and .75 inches in diameter, with a plunger diameter of 0.093 inches. The coil is tape-wrapped and rated for insulated class A (105°C). It can operate at multiple voltages including 6, 12, 24, 48, and 110 VDC, with a dielectric strength of 1500V 60 Hz. Its sturdy construction includes mounting options with a hex nut and lock washer, providing durability for over 1 million cycles.
GUARDIAN ELECTRIC TP6X12C24D Tubular Solenoid Specifications:
- Size: 1.54 inches (L) x 0.75 inches (D)
- Plunger Diameter: 0.093 inches
- Coil Voltage: 6, 12, 24, 48, 110 VDC (standard)
- Duty Cycle: 100% Continuous, 25% Intermittent, 10% Intermittent, 1% Pulse
- Insulation Class: Class A Rating - 105°C (221°F)
- Dielectric Strength: 1500V 60 Hz
- Coil Termination: 6.5 inches wire leads, 26 AWG
- Mounting: Hex nut with mounting bracket, or threaded bushing
- Weight: Plunger 4 oz, total 2.3 oz
- Life Expectancy: 1 million cycles
- Operating Temperature Range: Up to 105°C
- Material: Plastic plunger guide, tape-wrapped coil, metal housing
- Additional features: UL recognized, compliant with H insulation system up to 180°C
Buy the Guardian Series TP6x12 DC Tubular Solenoid: TP6X12-C-24D
Purchase the Guardian Series tubular solenoid online today and enhance your automation projects with durable, high-performance linear actuators. Ideal for continuous duty cycle operations, this compact solenoid offers multiple voltage options, UL recognition, and a proven operational lifespan exceeding 1 million cycles. Its robust construction includes mounting brackets and a plastic plunger guide, ensuring reliability and ease of installation. Whether you need a dependable component for industrial automation or control systems, buy now and get fast, secure delivery tailored to your technical requirements.
Order your Guardian Series TP6X12-C-24D tubular solenoid today and ensure reliable linear actuation for your automation and control applications.
Frequently Asked Questions
Where can I buy GUARDIAN ELECTRIC TP6X12C24D?
You can click on the BUY or RFQ button to purchase TP6X12C24D from an authorized GUARDIAN ELECTRIC distributor.
How do I troubleshoot issues or seek technical support for part TP6X12C24D?
You can download the TP6X12C24D datasheet or visit the GUARDIAN ELECTRIC website for support.
Who is the manufacturer of TP6X12C24D?
GUARDIAN ELECTRIC
