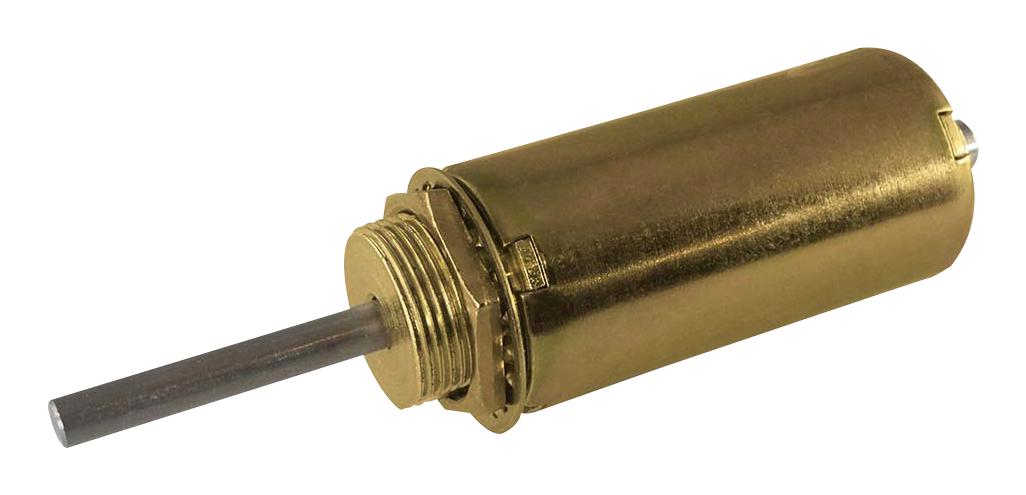

GUARDIAN ELECTRIC TP8X16I24D Tubular Push Solenoid
The TP8X16-I-24D is a 24V DC tubular push-type solenoid designed for reliable industrial operations. It features a 665mA current, an intermittent duty cycle based on ON/OFF ratio, and includes mounting accessories like an L-shaped bracket, nut, and lock washer. Its sturdy construction ensures durability under continuous or pulsating duty cycles, making it suitable for automation and control applications. Proper adherence to rated duty cycles is essential to prevent overheating and ensure maximum lifespan, offering consistent performance in demanding environments.
GUARDIAN ELECTRIC TP8X16I24D Tubular Push Solenoid Specifications:
- Size: 2 inches (L) x 1 inch (D)
- Plunger Diameter: 0.187 inches
- Coil Voltage Options: 6, 12, 24, 48, 110VDC
- Current: 665mA at 24VDC
- Duty Cycle: Intermittent (ON/OFF ratio-based), Continuous, Pulsing
- Insulation Class: Class A (105°C, 221°F)
- Dielectric Strength: 1500V 60Hz
- Mounting: Hex nut, or directly to threaded bushing with included mounting bracket
- Plunger: Plastic guide, 0.187-inch diameter
- Weight: Total 5.8 oz, Plunger 1.57 oz
- Life Expectancy: 1 million cycles
- Coil Leads: 6.5-inch wire, 22 AWG
- Temperature Rating: Up to 105°C (221°F)
- UL Recognized
- Coil Treatment: Tape wrapped
Buy the Buy Guardian Tubular Push Solenoid Part Number TP8X16-I-24D Online
Purchase the Guardian tubular push solenoid online today for dependable operation in industrial settings. This durable, high-performance solenoid features a 24V DC coil with 665mA current, designed for intermittent and continuous duty cycles. It includes mounting brackets, offers UL recognition, and ensures long life with up to 1 million cycles. Its compact size and reliable construction make it ideal for automation, machinery, and control systems. Secure your supply of this essential component and enjoy fast, convenient online ordering with excellent customer support.
Buy Guardian TP8X16-I-24D now and experience unmatched reliability and performance in industrial automation applications.
Frequently Asked Questions
Where can I buy GUARDIAN ELECTRIC TP8X16I24D?
You can click on the BUY or RFQ button to purchase TP8X16I24D from an authorized GUARDIAN ELECTRIC distributor.
How do I troubleshoot issues or seek technical support for part TP8X16I24D?
You can download the TP8X16I24D datasheet or visit the GUARDIAN ELECTRIC website for support.
Who is the manufacturer of TP8X16I24D?
GUARDIAN ELECTRIC
