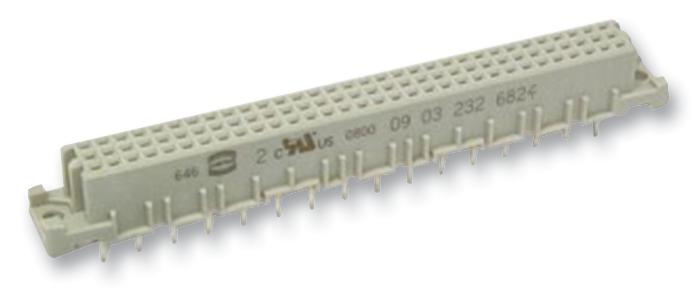

Harting 09032326824 female connector
This is a high-quality female connector designed for reliable electrical connections in industrial and electronic applications. Crafted from durable PBT material with glass fiber reinforcement, it features a compact 2.54 mm contact spacing and supports up to 96 contacts. The connector is suitable for various IEC 60603-2 types, including B, 2B, 3B, C, 2C, 3C, and M, with a maximum test voltage of 1000V and contact resistance of only 20mOhm. It features press-in and solder termination technologies, enhanced with gold over nickel plating for excellent conductivity and corrosion resistance, and withstands temperatures from -55°C to +125°C for robust performance.
Harting 09032326824 female connector Specifications:
- Type: Female connector, 2.54 mm contact spacing, supports IEC 60603-2 types B, 2B, 3B, C, 2C, 3C, M
- Maximum contacts: 96 contacts, test voltage: 1000V, contact resistance: max. 20mOhm
- Insulation resistance: min. 10^10 ohms, working current: 2A at 20°C, 40A for type M
- Temperature range: -55°C to +125°C (general), -40°C to +105°C (press-in connectors), termination: press-in, solder pins
- Material: PBT with 30% glass fiber, UL 94-V0, color RAL 7032 gray, copper alloy contacts with Au/Ni plating
- Dimensions: Contact spacing 2.54mm, designed for up to 16, 20, 32, 48, 64, or 96 contacts, with specified insertion/withdrawal forces
- Compliance: RoHS, lead-free, UL listed, suitable for industrial and electronic equipment applications, minimal creepage distance of 1.2mm
Buy the Buy HARTING Electronics Female Connector Part Number 09032326824 Online
Order the HARTING Electronics female connector online today for reliable electrical connections in industrial automation, data, and power systems. Engineered with durable PBT insulation and gold-plated copper contacts, it ensures excellent conductivity and corrosion resistance. Supports IEC 60603-2 standards, with a maximum of 96 contacts and a test voltage of 1000V, making it suitable for high-current applications up to 40A. Its press-in and solder termination options provide flexible installation, and the temperature range of -55°C to +125°C ensures dependable operation in harsh environments. Fast, secure, and easy to install, this connector is ideal for industrial and electronic equipment.
Get HARTING Electronics 09032326824 today—designed for reliable, high-current industrial power and signal transmission with long-lasting durability.
Frequently Asked Questions
Where can I buy Harting 09032326824?
You can click on the BUY or RFQ button to purchase 09032326824 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 09032326824?
You can download the 09032326824 datasheet or visit the Harting website for support.
Who is the manufacturer of 09032326824?
Harting
