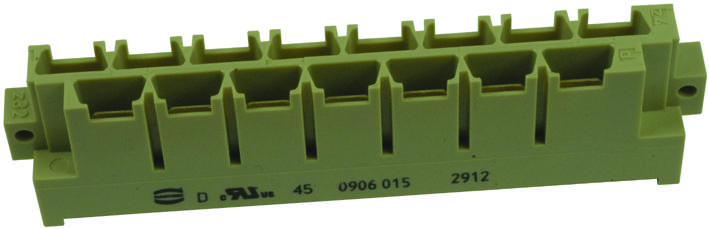

Harting 09060152912 DIN Power Male Connector
The HARTING 09060152912 is a DIN power male connector designed for reliable connections in various industrial environments. It utilizes standard H-type contacts with silver-plated surfaces, offering excellent conductivity and resistance to oxidation. For applications requiring extremely low contact resistance or operating in aggressive environments, gold-plated contacts are recommended. The connector's robust construction, combined with its wide temperature range and compliance with standards like IEC 60603-2, makes it suitable for demanding applications. Proper soldering techniques, such as using protective tape or jigs, are recommended to prevent damage during the soldering process.
Harting 09060152912 DIN Power Male Connector Specifications:
- Design: IEC 60603-2
- No. of contacts: 15
- Contact spacing: 5.08 mm / 6.5 mm
- Test voltage: 3100 V
- Contact resistance: < 8 mOhm
- Insulation resistance: > 1012 Ohm
- Workingcurrent: 15 A@20°C
- Temperature range: -55°C … +125°C
- Termination technology: solderpins
- Clearance distance: min. 4.5 mm
- Creepage distance: min. 8.0 mm
- Insertion and withdrawal force: ≤90N
- Matingcycles: 500
- UL file: E102079
- RoHS: Yes
- Leadfree: Yes
- Hotplugging: No
- Material: PBT (thermoplastics, glass fiber reinforcement 30%)
- Color: RAL 7032 (grey)
- UL classification: UL 94-V0
- NFF classification: I3, F4
- Contact material: Copper alloy
- Plating termination zone: Ag or Au
- Plating contact zone: Ag or Au
Buy the 09060152912 HARTING DIN Power Male Connector | myMectronic
Purchase the HARTING 09060152912 DIN Power Male Connector securely and efficiently online.
Buy Now
