Harting 09100000800 Industrial Connector Housing

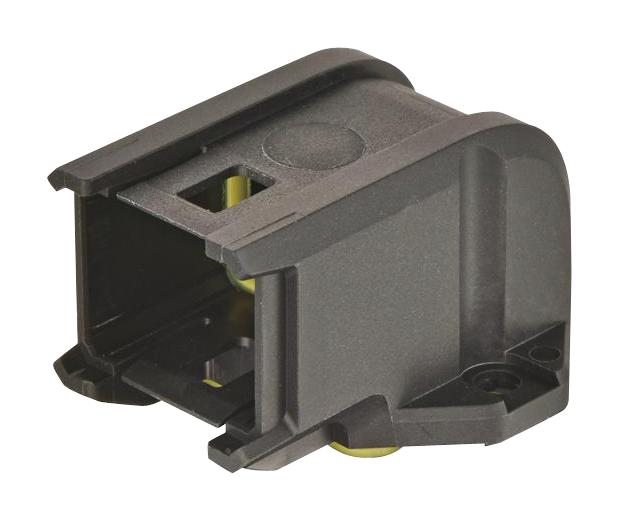

The Han 1A-base angled housing is a robust, angled bulkhead-mounted enclosure designed for industrial connector applications. Made from durable polyamide with a jet black color, it features a TPE seal for reliable protection. The housing supports a temperature range of -30°C to +90°C and has an IP65 degree of protection. It is compliant with RoHS and ELV standards and conforms to EN 45545-2 HL1-HL3 fire safety standards. Suitable for demanding industrial environments, it ensures secure installation with M3 screws and offers excellent mechanical and electrical safety features.
Harting 09100000800 Industrial Connector Housing Specifications:
- Material (hood/housing): Polyamide, RAL 9005 (jet black)
- Material (seal): TPE
- Temperature Rating: -30°C to +90°C
- Degree of protection: IP65
- Limiting temperature: -30 to +90 °C
- Tightening torque: 0.3 Nm for M3 screws
- Number of relockings: <10
- Material flammability class: V-0 according to UL 94
- RoHS compliant
- ELV compliant
- China RoHS compliant
- Approvals: EN 45545-2 HL1-HL3, IEC 61373 Category 1 Class B, DNV GL
- Net weight: 12g
- Country of origin: Germany
- European customs tariff number: 85366990
Buy the HARTING 09100000800 – Reliable Industrial Connector Housing for Industrial Applications
Purchase the HARTING industrial connector housing online today for reliable performance in harsh environments. Made from durable polyamide with a black finish, it features a TPE seal for IP65 protection. Designed for secure mounting with M3 screws, supporting temperatures from -30°C to +90°C, it meets all necessary standards including RoHS, UL V-0 flammability, and EN 45545-2 fire safety regulations. Ideal for demanding industrial applications, ensuring electrical safety, mechanical strength, and compliance for long-term use.
Get HARTING 09100000800 today—built for precision and long-lasting durability in industrial connector mounting.
Frequently Asked Questions
Where can I buy Harting 09100000800?
You can click on the BUY or RFQ button to purchase 09100000800 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 09100000800?
You can download the 09100000800 datasheet or visit the Harting website for support.
Who is the manufacturer of 09100000800?
Harting
