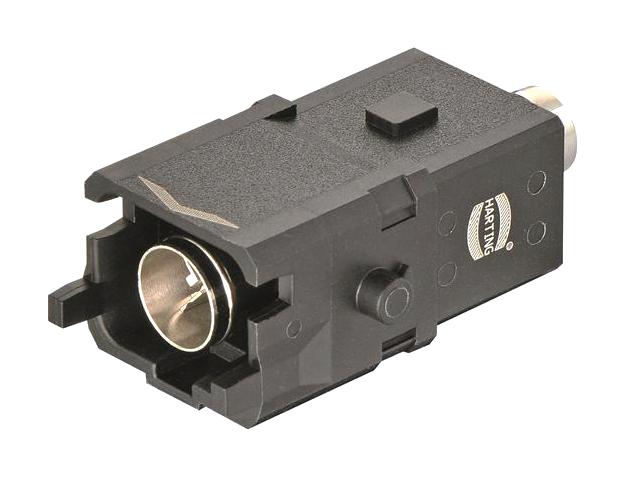

Harting 09100083006 Industrial Connector
This is a Han® 1A M12 male X-coded connector featuring a crimp termination with a single locking lever and 8 contacts. It provides shielding with an integrated cable tie and supports a conductor cross-section of 0.08 to 0.25 mm², rated for 0.5A current. The connector is rated for 48V and suitable for pollution degree 3 environments. It complies with Category 6A Class EA standards, supporting transmission characteristics up to 500 MHz and a data rate of 10 Gbit/s, with at least 100 mating cycles. The enclosure has an IP20 protection rating according to IEC 60529. Made of polyamide (PA) in RAL 9005 jet black color. It is approved under UL 1977 (ECBT2.E235076) and CSA-C22.2 No. 182.3 (ECBT8.E235). Note: Crimp contacts must be ordered separately.
Harting 09100083006 Industrial Connector Specifications:
- Rated voltage: 48V
- Rated impulse voltage: 0.8kV
- Pollution degree: 3
- Transmission characteristics: Cat. 6, Class Ea up to 500 MHz, 10 Gbit/s
- Insulation resistance: >10 GΩ
- Limit temperature: -30 to +90 °C
- Mating cycles: 2100
- Material (insert): Polyamide (PA)
- Color: RAL 9005 jet black
- Flammability class: V-0
- RoHS compliance: Yes
- Rated current: 0.5A
- Contact cross-section: 0.08 to 0.25 mm²
- Locking: Single locking lever
- Contacts: 8 + shielding
- Protection: IP20 IEC 60529
Buy the HARTING Series Han 1A M12-m X-coded: 09100083006
Order the HARTING Han M12 male X-coded connector online today for seamless integration into industrial automation systems. Crafted for durability and performance, this connector features gold-plated contacts, reliable crimp termination, and protection against environmental factors with IP20 rating. It supports high-speed data transmission up to 10 Gbit/s and complies with Category 6A standards. Suitable for applications requiring robust shielding, multiple mating cycles, and a compact design, ensuring long-lasting performance in demanding industrial environments. Improve your network setup now!
Get HARTING Han 1A M12-m X-coded connector today—designed for efficient, reliable industrial network connectivity with durable shielding and locking features.
Frequently Asked Questions
Where can I buy Harting 09100083006?
You can click on the BUY or RFQ button to purchase 09100083006 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 09100083006?
You can download the 09100083006 datasheet or visit the Harting website for support.
Who is the manufacturer of 09100083006?
Harting
