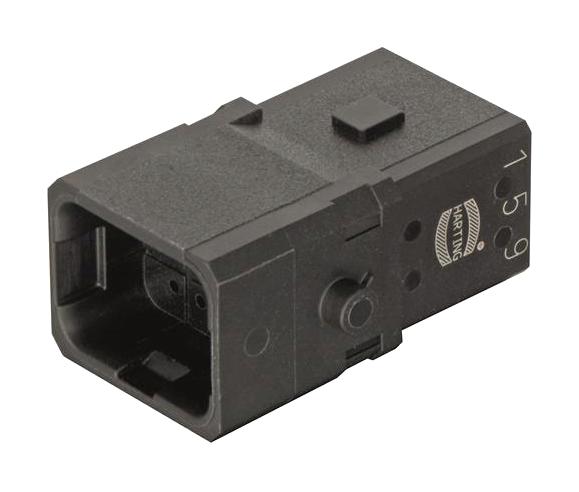

Harting 09100123006 Industrial Connector Insert
The Han 1A-12-c-m is a highly reliable industrial connector insert designed for crimp termination with male gender and single locking lever. Suitable for insertion sizes from 0.09 to 0.52 mm², it supports a rated current of 6.5A and voltage of 50V, with a rated impulse voltage of 0.8kV. The device withstands over 10 mating cycles, features an IP20 degree of protection, and is made from flame-retardant polyamide in jet black color. It can operate within -30°C to +90°C, ensuring durability in demanding environments and compliance with RoHS, UL 94V-0 standards, and relevant safety certifications.
Harting 09100123006 Industrial Connector Insert Specifications:
- Conductor cross-section: 0.09 ... 0.52 mm²
- Rated current: 6.5A
- Rated voltage: 50V
- Rated impulse voltage: 0.8kV
- Pollution degree: 3
- Mating cycles: 2100
- Degree of protection: IP20
- Material (insert): Polyamide (PA)
- Color: RAL 9005 jet black
- Material flammability class: V-0 (UL 94V-0)
- Operating temperature: -30°C to +90°C
- Dimensions: Not specified
- RoHS compliance: Yes
- Compliance: IEC 61373 Category 1 Class B, EN 45545-2 R22/R23/R24 HL1-HL3
- Certifications: DNV GL
Buy the HARTING Series Han 1A 12-connector: 09100123006
Order the HARTING Han 1A-12-c-m connector insert online now and ensure your industrial systems have reliable, high-quality connections. Designed for crimp termination, this device supports current ratings of 6.5A and voltage up to 50V, with a rated impulse voltage of 0.8kV. Its IP20 protection class makes it suitable for demanding environments, operating efficiently from -30°C to +90°C. Crafted from flame-retardant polyamide in jet black, it meets RoHS and UL 94V-0 standards, guaranteeing safety, longevity, and high-performance connectivity in automation applications.
Get HARTING Han 1A-12-c-m connector insert today—built for precision, durability, and reliable industrial connectivity.
Frequently Asked Questions
Where can I buy Harting 09100123006?
You can click on the BUY or RFQ button to purchase 09100123006 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 09100123006?
You can download the 09100123006 datasheet or visit the Harting website for support.
Who is the manufacturer of 09100123006?
Harting
