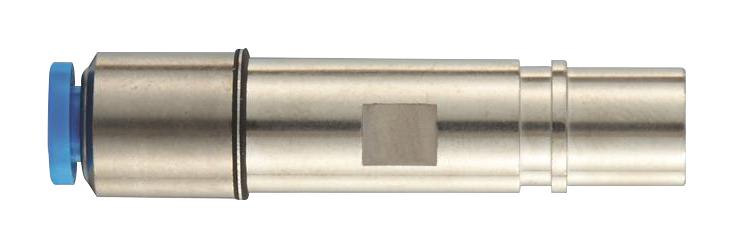

Harting 09140006454 Pneumatic Contact OD 4
The HARTING 09140006454 is a metal pneumatic contact designed for industrial connectors, specifically suited for vacuum applications. Constructed with brass contacts and an NBR seal, it operates effectively within a temperature range of -20 to +85°C and pressures up to 10 bar. While RoHS compliant with exemptions for lead content, it's important to note the presence of Lead and Nickel as SVHC substances. This contact is manufactured in Germany and is a crucial component for reliable pneumatic systems in various industrial settings.
Harting 09140006454 Pneumatic Contact OD 4 Specifications:
- Part Number: 09 14 000 6454
- Specification: Pneum. contact metal OD 4 female
- Type of contact: Pneumatic contact
- Description of the contact: Without shut-off
- Gender: Female
- Manufacturing process: Turned contacts
- Limiting temperature: -20 ... +85 °C
- Operating pressure: ≤10 bar
- Tube outer diameter: 4 mm
- Material (contacts): Brass
- Material (seal): NBR
- RoHS: compliant with exemption
- RoHS exemptions: 6(c): Copper alloy containing up to 4 % lead by weight
- ELV status: compliant with exemption
- China RoHS: 50
- REACH Annex XVII substances: Not contained
- REACH ANNEX XIV substances: Not contained
- REACH SVHC substances: Lead
- ECHA SCIP number: b51e5b97-eeb5-438b-8538-f1771d43c17d
- California Proposition 65 substances: Lead, Nickel
- UL 1977 ECBT2.E235076: UL / CSA
- CSA-C22.2 No. 182.3 ECBT8.E235076: UL / CSA
- Packaging size: 10
- Net weight: 13 g
- Country of origin: Germany
- European customs tariff number: 85366990
- eCl@ss: 27440204 Contact for industrial connectors
