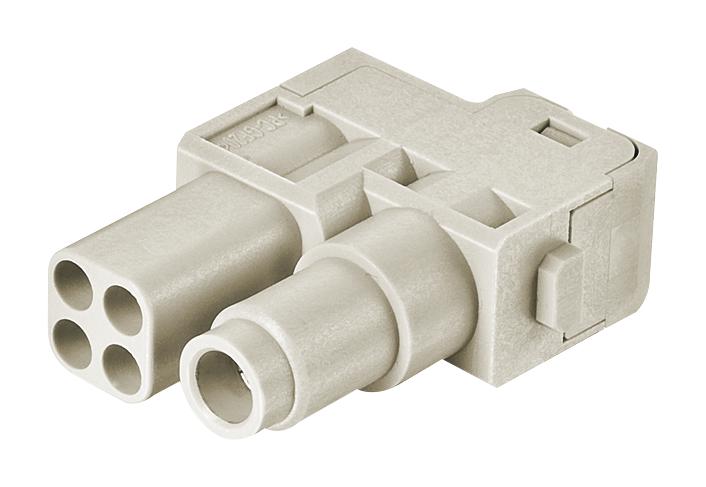

Harting 09140052742 Hybrid Module
The Han 70A Hybrid module is a versatile industrial connector component designed for power and signal transmission in automation systems. Featuring a female gender, it supports conductor cross-sections from 4 to 22 mm², rated at 70A current and 1000V. Crafted from durable polycarbonate with a pebble grey color, it ensures reliable performance even at temperatures from -40°C to +125°C. The module is UL/CSA approved, highly resilient with up to 2500 mating cycles, and suitable for demanding industrial environments, supporting both axial screw and crimp termination methods.
Harting 09140052742 Hybrid Module Specifications:
- Conductor Cross-Section: 4 to 22 mm²
- Rated Current: 70A
- Rated Voltage: 1000 V
- Rated Impulse Voltage: BkKV
- Pollution Degree: 3
- Signal Current: 16A
- Signal Voltage: 400 V
- Signal Impulse Voltage: 6kV
- Material (insert): Copper alloy containing up to 4% lead
- Material (body): Polycarbonate (PC)
- Color: RAL 7032 (pebble grey)
- Insulation Resistance: >10 MΩ
- Contact Resistance: <0.5 mΩ
- Tightening Torque: 4 Nm at 14, 16, 22 mm
- Operating Temperature Range: -40°C to +125°C
- Mating Cycles: 2500
- Flammability Class: V-0
- RoHS Compliant: Yes
- Approvals: UL/CSA
- Dimensions: Supports conductors from 14-22mm diameter
- Packaging Size: 50 units
- Net Weight: 19.34 g
Buy the Buy HARTING Han 70A Hybrid Module Part Number 09140052742 Online
Secure your industrial automation projects with the HARTING Han 70A Hybrid Module. Designed for power and signal applications, it supports conductor sizes from 14 to 22 mm², delivering 70A current and 1000V voltage capacity. Made from tough polycarbonate and tested for up to 2500 mating cycles, this UL/CSA approved module guarantees safety, durability, and high performance in demanding environments. Easy to install with axial screw or crimp termination, it is the perfect choice for reliable industrial connectivity solutions.
Order your HARTING Series Han 70A Hybrid Module 09140052742 today and enhance your industrial connectivity with reliable power and signal performance.
Frequently Asked Questions
Where can I buy Harting 09140052742?
You can click on the BUY or RFQ button to purchase 09140052742 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 09140052742?
You can download the 09140052742 datasheet or visit the Harting website for support.
Who is the manufacturer of 09140052742?
Harting
