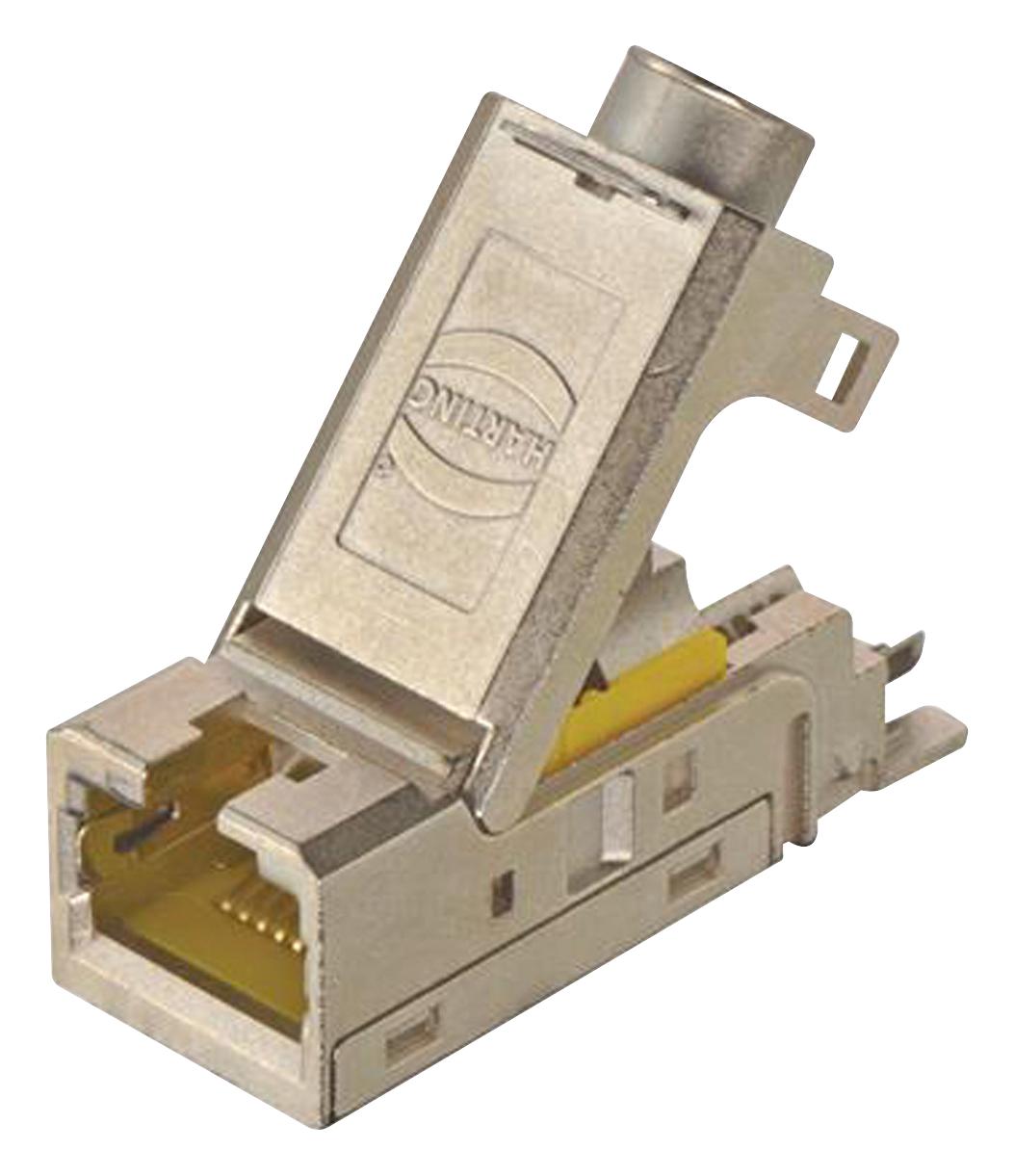

Harting 09145451561 RJ45 Data Connector
The Han-Mod RJ45 IDC cable jack 8P AWG 28-24 is a high-performance data connector suitable for industrial networking applications. This female RJ45 module features IDC termination technology, supporting Cat. 6, Class Ey standards with data rates up to 10 Gbit/s. Designed for reliable installation, it withstands temperatures from -40°C to +70°C and offers approximately 2,500 mating cycles. Made from polyamide with a nickel-plated zinc die-cast shielding, it meets RoHS and UL 94 V-0 flammability standards. Certified by DNV GL, it ensures robust and safe connectivity in demanding environments.
Harting 09145451561 RJ45 Data Connector Specifications:
- Termination method: IDC
- Gender: Female
- Number of contacts: 8
- Conductor cross-section: AWG 28 ... AWG 24
- Transmission characteristics: Cat. 6, Class Ey up to 500 MHz
- Data rate: Up to 10 Gbit/s
- Limiting temperature: -40°C to +70°C
- Mating cycles: 2500
- Material (insert): Polyamide (PA)
- Material (shielding): Zinc die-cast, nickel-plated
- Material flammability class: UL 94 V-0
- RoHS compliant: Yes
- ELV status compliant: Yes
- Country of origin: Latvia
- Certifications: DNV GL
Buy the Buy HARTING RJ45 Data Jack Part Number 09145451561 Online
Purchase the HARTING RJ45 data jack 09145451561 online today to ensure secure, high-speed data transmission in industrial environments. This connector features IDC termination technology for quick and reliable installation, supporting data rates up to 10 Gbit/s for high-performance networks. Made from durable polyamide with zinc die-cast shielding, it withstands tough conditions from -40°C to +70°C. Certified by DNV GL and RoHS compliant, it guarantees safety and environmental standards are met. Ideal for industrial automation, communication networks, and control systems requiring reliable connectivity.
Buy HARTING RJ45 data jack part 09145451561 now and experience reliable, high-speed industrial network connectivity with robust IDC termination.
Frequently Asked Questions
Where can I buy Harting 09145451561?
You can click on the BUY or RFQ button to purchase 09145451561 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 09145451561?
You can download the 09145451561 datasheet or visit the Harting website for support.
Who is the manufacturer of 09145451561?
Harting
