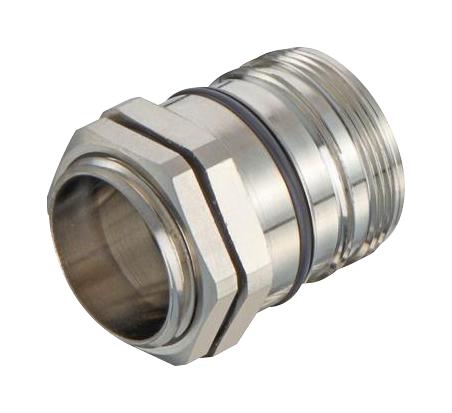

Harting 09151000363 M23 HBM Front Male
The HARTING Han M23 HBM front male connector is designed for demanding industrial environments requiring reliable and protected connections. Constructed from a copper-zinc alloy with a nickel-plated finish, this connector offers excellent corrosion resistance. The M20x1.5 thread allows for secure attachment to mating components, while the robust housing provides ingress protection up to IP67 and IP69K standards. It is commonly used in machinery, automation systems, and power distribution applications where environmental factors pose a challenge. The connector is REACH and RoHS compliant, ensuring adherence to environmental regulations.
Harting 09151000363 M23 HBM Front Male Specifications:
- Locking type: Screw locking
- Size: M23
- Fixing: Thread M20 x 1.5 for male inserts
- Limiting temperature: -40 ... +125 °C
- Degree of protection: IP67 (locked), IP69 / IPX9K (locked)
- Material (hood/housing): Copper-zinc alloy
- Surface (hood/housing): Nickel plated
- Material (seal): NBR
- Colour (seal): Black
- RoHS: compliant with exemption
- RoHS exemptions: 6c: Copper alloy containing up to 4 % lead by weight
- ELV status: compliant with exemption
- China RoHS: 50
- REACH Annex XVII substances: No
- REACH ANNEX XIV substances: No
- REACH SVHC substances: Yes (Lead)
- UL CSA: UL 1977 ECBT2.E235076
- Packaging size: 5
- Net weight: 32.9 g
- Country of origin: Germany
- European customs tariff number: 85389099
- eCl@ss: 27440202
Buy the 09151000363 HARTING M23 HBM Front Male | myMectronic
Purchase the HARTING 09151000363 M23 HBM Front Male connector securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Harting 09151000363?
You can click on the BUY or RFQ button to purchase 09151000363 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 09151000363?
You can download the 09151000363 datasheet or visit the Harting website for support.
Who is the manufacturer of 09151000363?
Harting
