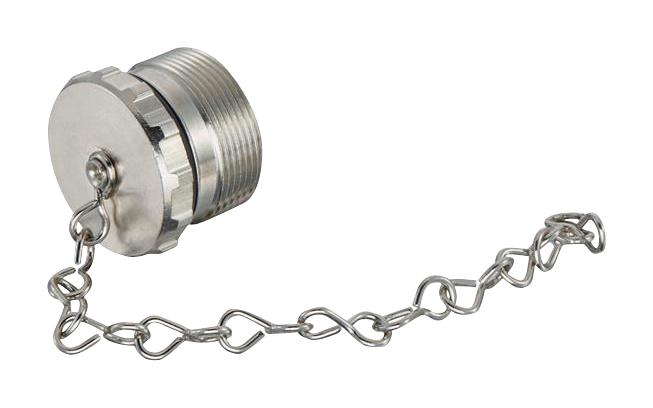

Harting 09151009103 Metal Screw Cover Chain
The HARTING Han M23 Metal Screw Cover – Chain 100mm is a robust and reliable solution for protecting M23 signal connectors in industrial applications. Constructed from a copper-zinc alloy with a nickel-plated surface, this cover offers excellent corrosion resistance and durability. The integrated chain allows for flexible cable routing and movement, making it ideal for applications where vibration or movement is present. It meets IP67 and IP69/IPX9K protection standards, ensuring reliable performance in harsh environments. Compliant with RoHS and REACH regulations, this cover provides a safe and environmentally responsible solution for a wide range of industrial connector protection needs.
Harting 09151009103 Metal Screw Cover Chain Specifications:
- Part Number: 09 15 100 9103
- Han M23 Metal Screw Cover – Chain: 100mm
- Locking Type: Screw locking
- Size: M23
- Compatibility: Not compatible to ComLock
- Limiting Temperature: -40 ... +125 °C
- Degree of Protection (IEC 60529): IP67
- Degree of Protection (ISO 20653): IP69 / IPX9K
- Material (hood/housing): Copper-zinc alloy
- Surface (hood/housing): Nickel plated
- RoHS Status: Compliant with exemption
- RoHS Exemptions: 6c: Copper alloy containing up to 4 % lead by weight
- ELV Status: Compliant with exemption
- China RoHS: 50
- REACH Annex XVII Substances: No
- REACH ANNEX XIV Substances: No
- REACH SVHC Substances: Lead
- UL / CSA: UL 1977 ECBT2.E235076
- Packaging Size: 5
- Net Weight: 26.8 g
- Country of Origin: Germany
- European Customs Tariff Number: 85389099
Buy the 09151009103 HARTING Metal Screw Cover Chain | myMectronic
Purchase the HARTING 09151009103 Metal Screw Cover – Chain 100mm securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Harting 09151009103?
You can click on the BUY or RFQ button to purchase 09151009103 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 09151009103?
You can download the 09151009103 datasheet or visit the Harting website for support.
Who is the manufacturer of 09151009103?
Harting
