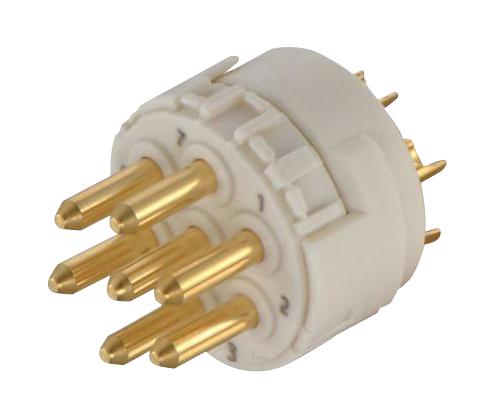

Harting 09151072602 Male Solder Termination Insert
The HARTING Han M23 09151072602 is a male signal insert designed for use in Han M23 connectors. This insert provides a reliable connection with 7 contacts, utilizing a solder termination method. Constructed from polyamide with copper alloy contacts and gold plating, it offers excellent conductivity and durability. It is suitable for a wide range of industrial applications, including power transmission, automation, and data communication, where robust and secure connections are essential. The insert is rated for a conductor cross-section of up to 2.5 mm², a rated current of 20 A, and a rated voltage of 300 V, ensuring reliable performance in demanding environments.
Harting 09151072602 Male Solder Termination Insert Specifications:
- Part Number: 09 15 107 2602
- Specification: Han M23 07 Male -solder (termination)
- HARTING eCatalogue: https://b2b.harting.com/09151072602
- Category: Inserts
- Series: Han®M23 Signal
- Element: Inserts
- Termination method: Solder termination
- Gender: Male
- Number of contacts: 7
- Conductor cross-section: 2.5 mm² max.
- Rated current: 20 A
- Rated voltage: 300 V
- Rated impulse voltage: 2.5 kV
- Pollution degree: 3
- Insulation resistance: > 1010Ω
- Limiting temperature: -40 ... +125 °C
- Mating cycles: ≥500
- Material (insert): Polyamide
- Colour (insert): White
- Material (contacts): Copper alloy
- Surface (contacts): Gold plated
- Material flammability class acc. to UL 94: V-0
- RoHS: compliant with exemption
- RoHS exemptions: 6c: Copper alloy containing up to 4 % lead by weight
- ELV status: compliant with exemption
- China RoHS: 50
- REACH Annex XVII substances: No
- REACH ANNEX XIV substances: No
- REACH SVHC substances: Lead
- UL / CSA: UL 1977 ECBT2.E235076
- Packaging size: 5
- Net weight: 8 g
- Country of origin: Germany
- European customs tariff number: 85366990
- eCl@ss: 27440205
