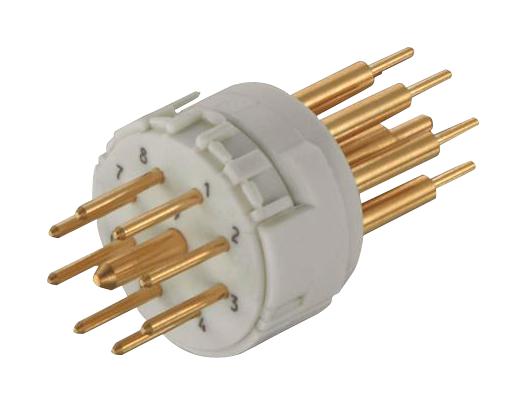

Harting 09151092603 Male Soldered Contact Insert
The HARTING Han M23 09151092603 is a high-quality circular connector insert designed for demanding industrial environments. This male insert provides 8 standard contacts and an additional special contact, offering versatility in signal transmission. Constructed with a polyamide insert and gold-plated copper alloy contacts, it ensures reliable performance and durability. Compliant with RoHS and various industry standards, this connector is suitable for applications requiring robust and secure connections in machinery, automation systems, and power distribution.
Harting 09151092603 Male Soldered Contact Insert Specifications:
- Part Number: 09 15 109 2603
- Specification: Han M23 09 Male -soldered contact
- HARTING eCatalogue: https://b2b.harting.com/09151092603
- Category: Inserts
- Series: Han M23 Signal
- Element: Inserts
- Termination method: PCB solder termination
- Gender: Male
- Number of contacts: 8
- Additional contacts: + 1 additional special contact
- Rated current: 8 A
- Rated voltage: 200 V
- Rated impulse voltage: 2.5 kV
- Pollution degree: 3
- Rated current (special contact): 20 A
- Rated voltage (special contact): 200 V
- Rated impulse voltage (special contact): 2.5 kV
- Pollution degree (special contact): 3
- Insulation resistance: > 10 Ω
- Limiting temperature: -40 ... +125 °C
- Material (insert): Polyamide
- Colour (insert): White
- Material (contacts): Copper alloy
- Surface (contacts): Gold plated
- Material flammability class acc. to UL 94: V-0
- RoHS: compliant with exemption
- RoHS exemptions: 6c: Copper alloy containing up to 4 % lead by weight
- ELV status: compliant with exemption
- China RoHS: 50
- REACH Annex XVII substances: No
- REACH ANNEX XIV substances: No
- REACH SVHC substances: Lead
- Packaging size: 5
- Net weight: 8.8 g
- Country of origin: Germany
- European customs tariff number: 85366990
- eCl@ss: 27440205
