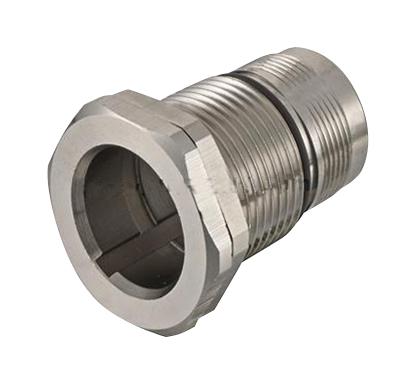

Harting 09156000308 M23 Power HBM Back Housing
The HARTING 09156000308 Han M23 P HBM Back M25x1,5 is a robust, bulkhead-mounted housing designed for demanding industrial environments. Constructed from a copper-zinc alloy with a nickel-plated surface, it offers excellent corrosion resistance. The housing features a straight design and rear mounting capability via a M25x1.5 thread. It is sealed with NBR, providing IP67/IP69/IPX9K protection against dust and water ingress. This housing is ideal for applications requiring a secure and reliable connection in harsh conditions, such as automated machinery, power distribution systems, and outdoor equipment.
Harting 09156000308 M23 Power HBM Back Housing Specifications:
- Series: Han®M23 Power
- Type: Bulkhead mounted housings
- Design: Straight
- Mounting: Rear mounting
- Size: M23
- Fixing Type: Thread M25 x 1.5
- Compatibility: Not compatible to ComLock
- Limiting Temperature: -40 ... +125 °C
- Degree of Protection: IP67 / IP69 / IPX9K
- Material (hood/housing): Copper-zinc alloy
- Surface (hood/housing): Nickel plated
- Material (seal): NBR
- Seal Colour: Black
- UL Listing: UL 1977 ECBT2.E235076
- CSA Listing: CSA-C22.2 No. 182.3 ECBT8.E235076
- Packaging Size: 5
- Net Weight: 46.3 g
- Country of Origin: Germany
- Customs Tariff Number: 85366990
Buy the 09156000308 HARTING M23 Power HBM Back Housing | myMectronic
Purchase the HARTING 09156000308 M23 Power HBM Back Housing securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Harting 09156000308?
You can click on the BUY or RFQ button to purchase 09156000308 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 09156000308?
You can download the 09156000308 datasheet or visit the Harting website for support.
Who is the manufacturer of 09156000308?
Harting
