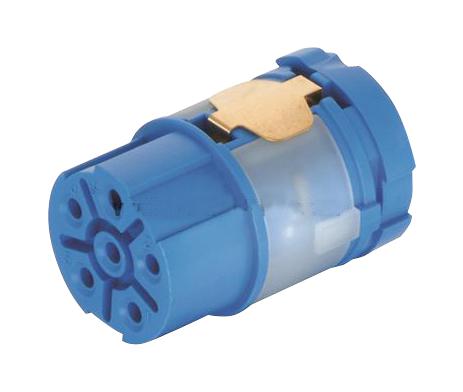

Harting 09156063101 M23 Power Female Connector
The HARTING Han M23 P 5+PE Female -C connector is a high-quality power connector designed for demanding industrial applications. Constructed with a polyamide insert and a blue color, it offers excellent insulation resistance and a wide operating temperature range (-40°C to +125°C). It is compliant with RoHS and ELV standards, ensuring environmental responsibility. This connector is ideal for applications requiring reliable power transmission and robust performance, such as automated machinery, power distribution systems, and heavy industrial equipment. Crimp contacts must be ordered separately for termination.
Harting 09156063101 M23 Power Female Connector Specifications:
- Specification: Han M23 P 5+PE Female -C
- HARTING eCatalogue: https://b2b.harting.com/09156063101
- Termination method: Crimp termination
- Gender: Female
- Number of contacts: 5
- PE contact: Yes
- Conductor cross-section: 0.14 ... 4 mm²
- Electrical data acc. to IEC 61984: 28 A 600 V 4 kV 3
- Rated current: 28 A
- Rated voltage: 600 V
- Rated impulse voltage: 4 kV
- Pollution degree: 3
- Insulation resistance: >10 Ω
- Limiting temperature: -40 ... +125 °C
- Mating cycles: ≥500
- Test voltage Ur.m.s.: 4 kV
- Material (insert): Polyamide
- Colour (insert): Blue
- Flammability acc. to UL 94: V-0
- China RoHS: e
- REACH Annex XVII substances: No
- REACH ANNEX XIV substances: No
- REACH SVHC substances: No
- UL / CSA: UL 1977 ECBT2.E235076 CSA-C22.2 No. 182.3 ECBT8.E235076
- Packaging size: 5
- Net weight: 9.1 g
- Country of origin: Germany
- Customs tariff number: 85366990
Buy the 09156063101 HARTING M23 Power Female Connector | myMectronic
Purchase the HARTING 09156063101 Han M23 P 5+PE Female -C connector securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Harting 09156063101?
You can click on the BUY or RFQ button to purchase 09156063101 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 09156063101?
You can download the 09156063101 datasheet or visit the Harting website for support.
Who is the manufacturer of 09156063101?
Harting
