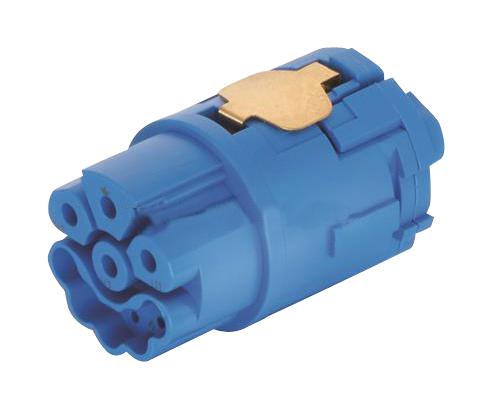

Harting 09156093101 M23 Power Female Connector
The HARTING Han M23 P 5+3+PE Female connector is a high-quality, robust connector designed for demanding industrial environments. It provides both power and signal connectivity with 5 signal contacts and 3 power contacts, along with a PE contact. The connector utilizes a crimp termination method and is suitable for applications requiring reliable connections in harsh conditions. It is RoHS compliant and built to withstand a minimum of 500 mating cycles, ensuring long-term performance and reliability. Typical applications include industrial automation, power distribution, and heavy machinery.
Harting 09156093101 M23 Power Female Connector Specifications:
- Part Number: 09 15 609 3101
- Specification: Han M23 P 5+3+PE Female -C (A)
- HARTING eCatalogue: https://b2b.harting.com/09156093101
- Category: Inserts
- Series: Han M23 Power
- Element: Inserts
- Mating face: A
- Termination method: Crimp termination
- Gender: Female
- Number of contacts: 3
- Additional contacts: 5 additional signal contacts
- PE contact: Yes
- Conductor cross-section: 0.14 ... 4 mm²
- Electrical data acc. to IEC 61984: 28 A 630 V 4 kV 3
- Rated current: 28 A
- Rated voltage: 630 V
- Rated impulse voltage: 4 kV
- Pollution degree: 3
- Electrical data, signal: 10 A 250 V 2.5 kV 3
- Rated current (signal): 10 A
- Rated voltage (signal): 250 V
- Rated impulse voltage (signal): 2.5 kV
- Pollution degree (signal): 3
- Insulation resistance: >10 Ω
- Limiting temperature: -40 ... +125 °C
- Mating cycles: ≥500
- Material (insert): Polyamide
- Colour (insert): Blue
- Flammability acc. to UL 94: V-0
- RoHS: compliant
- ELV status: compliant
- China RoHS: e
- REACH Annex XVII substances: No
- REACH ANNEX XIV substances: No
- REACH SVHC substances: No
- UL / CSA: UL 1977 ECBT2.E235076 CSA-C22.2 No. 182.3 ECBT8.E235076
- Packaging size: 5
- Net weight: 7.14 g
- Country of origin: Germany
- Customs tariff number: 85366990
