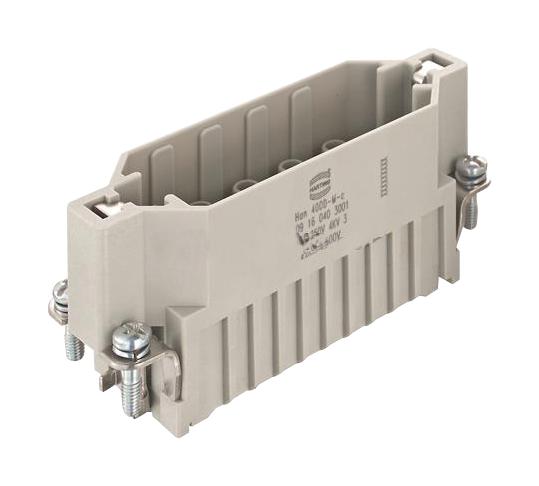

Harting 09160403001 40DD M-c Insert
The HARTING Han 40DD M-c insert is a high-quality connector designed for demanding industrial environments. This 40-contact insert utilizes crimp termination for secure connections and is designed with a male gender. It is suitable for a wide range of applications requiring robust and reliable power and signal transmission. Please note that crimp contacts must be ordered separately to complete the assembly. The insert is manufactured from polycarbonate and features a pebble grey (RAL 7032) finish, ensuring durability and a professional appearance.
Harting 09160403001 40DD M-c Insert Specifications:
- Specification: Han 40DD M-c
- HARTING eCatalogue: https://b2b.harting.com/09160403001
- Category: Inserts
- Series: Han DD
- Termination method: Crimp termination
- Gender: Male
- Size: 16 A
- Number of contacts: 40
- PE contact: Yes
- Conductor cross-section: 0.14 ... 2.5 mm²
- Rated current: 10 A
- Rated voltage: 250 V
- Rated impulse voltage: 4 kV
- Pollution degree: 3
- Rated voltage acc. to UL: 600 V
- Rated voltage acc. to CSA: 600 V
- Insulation resistance: > 10 Ω
- Limiting temperature: -40 ... +125 °C
- Mating cycles: ≥500
- Material (insert): Polycarbonate
- Colour (insert): RAL 7032 (pebble grey)
- Material flammability class acc. to UL 94: V-0
- Specifications: EN 60664-1
- Approvals: DNV GL
- UL / CSA: UL 1977 ECBT2.E235076
- Packaging size: 1
- Net weight: 40 g
- Country of origin: China
- European customs tariff number: 85389099
- eCl@ss: 27440205
