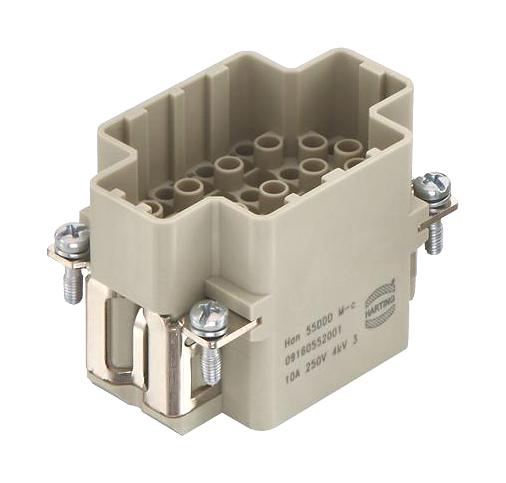

Harting 09160552001 Han 55DDD M-c Insert
The HARTING Han 55DDD M-c insert is a high-quality component designed for secure and reliable electrical connections in industrial environments. This insert features 55 contacts and utilizes crimp termination for a robust connection. It is a male connector, suitable for a variety of applications requiring durable and high-performance connectivity. The polycarbonate (PC) construction and V-0 flammability rating ensure safety and longevity. Please order crimp contacts separately.
Harting 09160552001 Han 55DDD M-c Insert Specifications:
- Part Number: 09 16 055 2001
- Specification: Han 55DDD M-c
- Termination Method: Crimp termination
- Gender: Male
- Size: 6 B
- Number of Contacts: 55
- PE Contact: Yes
- Conductor Cross-Section: 0.14 ... 2.5 mm²
- Rated Current: 10 A
- Rated Voltage: 250 V
- Rated Impulse Voltage: 4 kV
- Pollution Degree: 3
- Insulation Resistance: >1010Ω
- Limiting Temperature: -40 ... +125 °C
- Mating Cycles: ≥500
- Material (insert): Polycarbonate (PC)
- Colour (insert): RAL 7032 (pebble grey)
- Material Flammability Class (UL 94): V-0
- Packaging Size: 1
- Net Weight: 37.5 g
- Country of Origin: China
- European Customs Tariff Number: 85366990
- eCl@ss: 27440205
