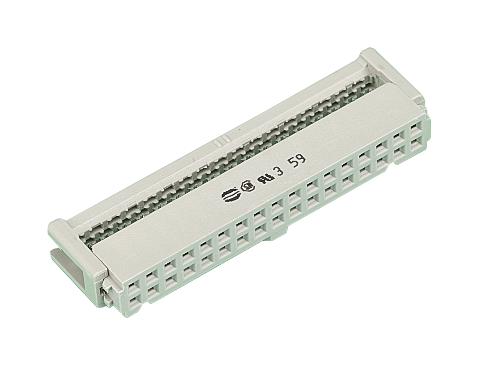

Harting 09185207803 Industrial PCB Connector
The SEK-18 SV FE TYPA 20P PL3 is a high-performance female connector ideal for PCB to cable connections in industrial applications. Featuring 20 contacts with a 1.27 mm pitch, it supports AWG 28/7 to AWG 26/7 wires, rated at 2.5A current. Constructed with a durable thermoplastic resin housing and nickel-plated copper alloy contacts, it withstands temperatures from -55°C to +125°C. Certification includes UL 1977 and CSA, ensuring reliable electrical and mechanical operation for demanding environments. This connector ensures easy installation with a mating cycle of 250 times and test voltage of 1kV.
Harting 09185207803 Industrial PCB Connector Specifications:
- Material (housing): Thermoplastic resin (PBT), grey
- Material (contacts): Copper alloy with noble metal over Ni (mating side), Sn over Ni (termination side)
- Color: Grey
- Contact Rows: 2
- Contact Spacing: 2.54 mm (termination side), 1.27 mm (mating side)
- Rated Current: 2.5A
- Insulation Resistance: >10°Ω
- Contact Resistance: 20 mΩ
- Limiting Temperature: -55°C to +125°C
- Insertion and Withdrawal Force: <60N
- Mating Cycles: 250
- Test Voltage: 1kV
- Compliance: IEC 60603-13, UL 1977, CSA-C22.2 No. 182.3
- RoHS, REACH compliant
- Operating Temperature Range: -55°C to +125°C
Buy the HARTING Series SEK Connectors: SEK-18 SV FE TYPA 20P PL3
Experience the precision and durability of the HARTING SEK-18 SV FE TYPA 20P PL3 connector. Designed for PCB to cable connections, it offers 20 contacts with a 1.27 mm pitch, rated at 2.5A. Made from high-quality thermoplastic resin with copper alloy contacts, it ensures reliable performance in demanding environments. Certified by UL and CSA, this connector supports up to 250 mating cycles and withstands temperature ranges from -55°C to +125°C. Perfect for automation, industrial equipment, and electronic systems requiring robust, high-quality connectors.
Get HARTING SEK-18 SV FE TYPA 20P PL3 today—built for reliable PCB to cable connections in industrial automation and electronic applications.
Frequently Asked Questions
Where can I buy Harting 09185207803?
You can click on the BUY or RFQ button to purchase 09185207803 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 09185207803?
You can download the 09185207803 datasheet or visit the Harting website for support.
Who is the manufacturer of 09185207803?
Harting
