Harting 09185346324 Low-Profile Male Connector
The SEK 18 series low-profile male box header features 34 solder pins with a 2.54mm pitch, crafted from PBT in black or grey for durability. Contacts are made from copper alloy, plated with tin over nickel to ensure reliable electrical conductivity and corrosion resistance. Designed according to IEC 60603-13 standards, it supports up to 250 mating cycles, making it suitable for industrial automation and control systems. The connector's flammability rating is UL94 V-0, and it includes straight 2.9mm solder pins ideal for tight, space-efficient assemblies in various electronic and manufacturing applications.
Harting 09185346324 Low-Profile Male Connector Specifications:
- Contact Count: 34 contacts
- Pin Pitch: 2.54 mm
- Insulator Material: PBT with 30% glass fiber reinforcement
- Contact Material: Copper alloy
- Contact Plating: Tin over nickel, sliding contact surfaces with gold or PdNi
- Flammability: UL94 V-0
- Maximum Mating Cycles: 250
- Max Working Voltage: 500 V (IEC standard)
- Temperature Range: -55°C to +125°C
- Contact Resistance: Max 20mOhm
- Insulation Resistance: Min 1 MOhm
- Test Voltage: URMS ARV
- Clearance & Creepage: Min 0.5 mm clearance, 0.56 mm creepage
- Termination Technology: Solder
- Current Capacity: Up to 250 mating cycles, contact forces up to 68N

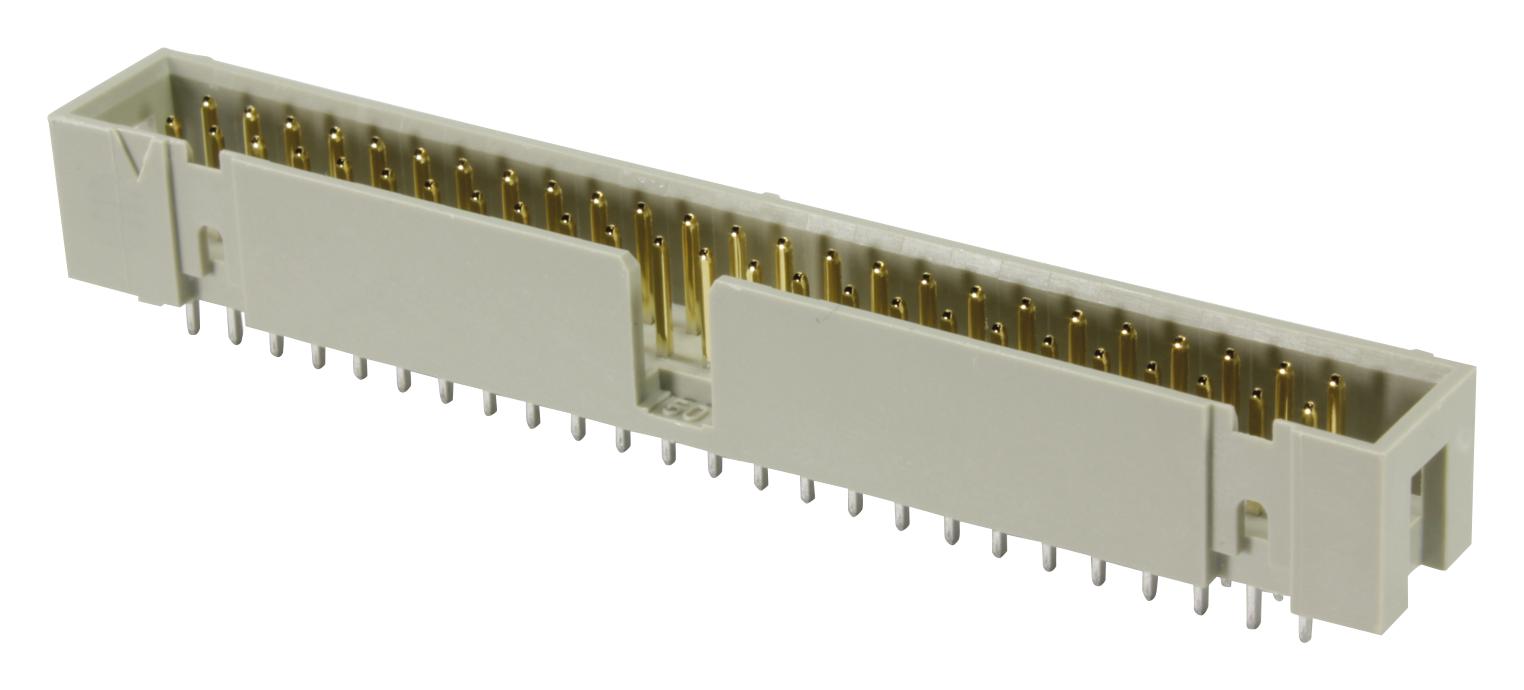

Buy the Buy HARTING Electronics SEK 18 Part Number 09185346324 Online
Order the HARTING SEK 18 low-profile male connector with 34 solder pins, supporting 250 mating cycles, designed for industrial applications. Made from durable PBT with copper alloy contacts plated in tin over nickel for excellent conductivity. Its compact design with a 2.54mm pitch suits space-constrained environments, while UL94 V-0 rated materials ensure safety. Perfect for automation, control panels, and electronic assemblies, this connector offers reliable performance, easy soldering, and long-lasting service—order online today for quick delivery and competitive pricing.
Buy HARTING Electronics SEK 18 low-profile connector now and experience reliable, space-efficient connections with high durability and proven IEC standards.
Frequently Asked Questions
Where can I buy Harting 09185346324?
You can click on the BUY or RFQ button to purchase 09185346324 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 09185346324?
You can download the 09185346324 datasheet or visit the Harting website for support.
Who is the manufacturer of 09185346324?
Harting
