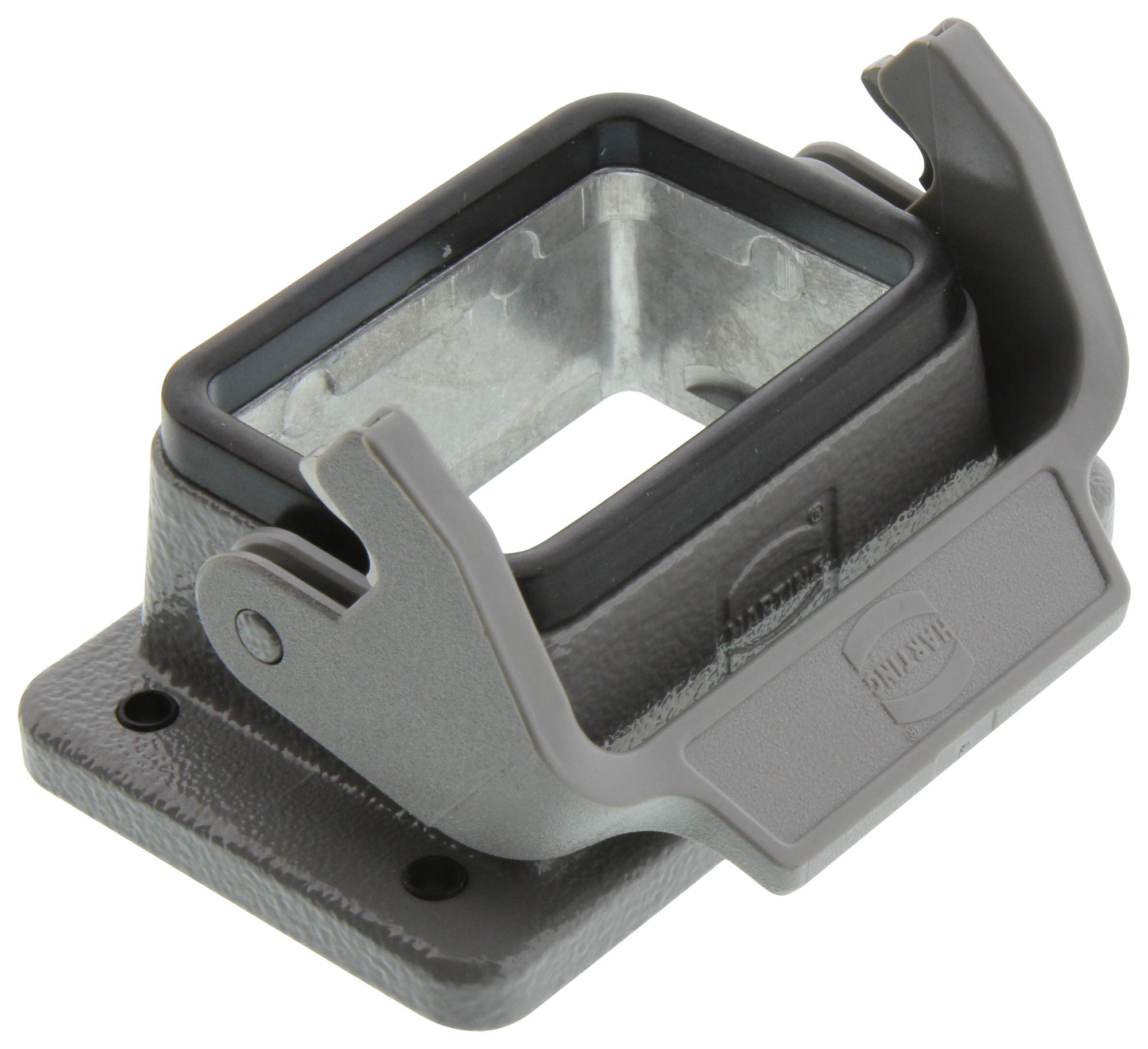

Harting 09300060392 Han 6B Rear-Fit Housing
The HARTING Han 6B HBM Rear-Fit SL w/o frame is a robust and reliable housing solution for industrial connectors. Constructed from aluminum die-cast and powder-coated in RAL 7037 (dust grey), this housing offers excellent durability and corrosion resistance. It is designed for rear mounting applications and features a single locking lever with Han-Easy Lock® functionality. The housing provides IP65 degree of protection and is suitable for a wide range of industrial environments, ensuring secure and reliable connectivity. It is also compliant with UL 50/50E Type ratings of 4, 4X, and 12.
Harting 09300060392 Han 6B Rear-Fit Housing Specifications:
- Part Number: 09 30 006 0392
- Specification: Han 6B HBM Rear-Fit SL w/o frame
- Series of hoods/housings: Han®B
- Type of hood/housing: Bulkhead mounted housing
- Description of hood/housing: Rear mounting
- Type: Low construction
- Locking type: Single locking lever
- Han-Easy Lock®: Yes
- Size: 6 B
- Field of application: Standard hoods/housings for industrial connectors
- Limiting temperature: -40 ... +125 °C
- Degree of protection: IP65
- Type rating UL 50 / UL 50E: 4X, 12
- Material (hood/housing): Aluminium die-cast
- Surface (hood/housing): Powder-coated
- Colour (hood/housing): RAL 7037 (dust grey)
- Material (seal): NBR
- Material (locking): Polycarbonate(PC), Stainless steel
- Colour (locking): RAL 7037 (dust grey)
- Flammability class UL 94: V-0
- Packaging size: 1
- Country of origin: China
- Customs tariff number: 85389099
- eCl@ss: 27440202
Buy the 09300060392 HARTING Han 6B Rear-Fit Housing | myMectronic
Purchase the HARTING 09300060392 Han 6B Rear-Fit Housing securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Harting 09300060392?
You can click on the BUY or RFQ button to purchase 09300060392 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 09300060392?
You can download the 09300060392 datasheet or visit the Harting website for support.
Who is the manufacturer of 09300060392?
Harting
