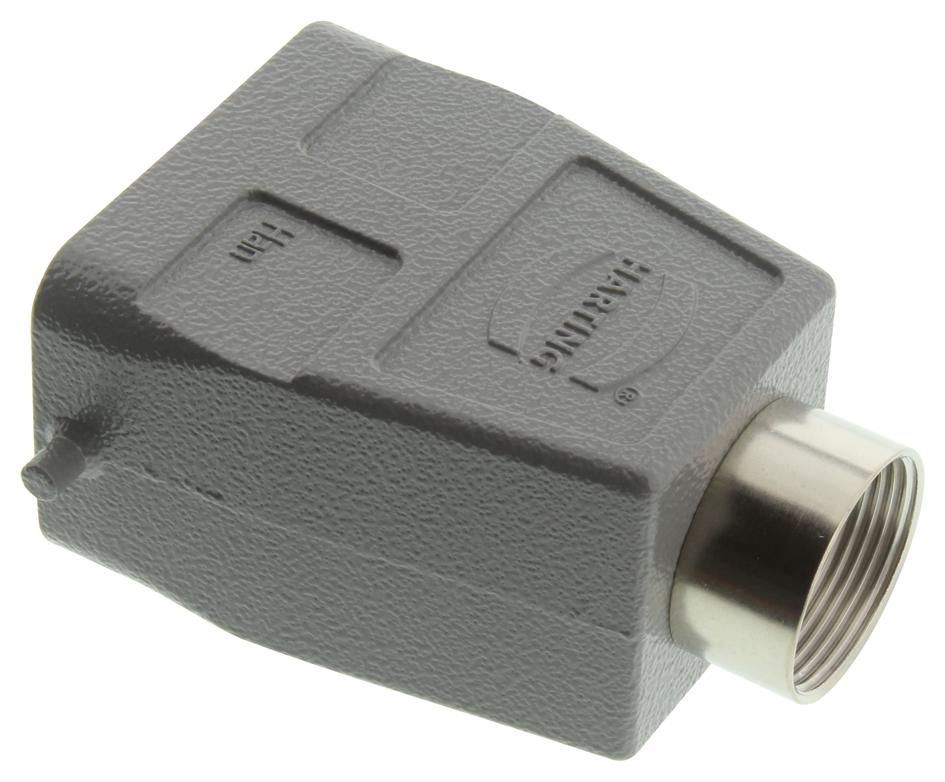

Harting 09300060442 Han 6B Hood Housing
The HARTING Han 6B-gg-21 hood/housing is a high-construction solution for industrial connector applications. It's manufactured from aluminum die-cast, powder-coated in RAL 7037 (dust grey), and designed for top entry cable configurations. The housing provides IP65, IP66, and IP67 ingress protection, ensuring reliable performance in harsh environments. It is RoHS compliant with exemptions and is suitable for a wide range of industrial applications requiring robust and sealed connector protection. Please refer to the user documentation for complete and up-to-date information.
Harting 09300060442 Han 6B Hood Housing Specifications:
- Part Number: 09 30 006 0442
- Specification: Han 6B-gg-21
- Series of hoods/housings: Han®B
- Type of hood/housing: Hood
- Description of hood/housing: With adapter
- Type: High construction
- Cable entry: 1x Pg 21
- Locking type: Single locking lever
- Field of application: Standard hoods/housings for industrial connectors
- Limiting temperature: -40 ... +125 °C
- Degree of protection IEC 60529: IP65, IP66, IP67
- Type rating UL 50 / UL 50E: 4, 4X, 12
- Material (hood/housing): Aluminum die-cast
- Surface (hood/housing): Powder-coated
- Colour (hood/housing): RAL 7037 (dust grey)
- RoHS: compliant with exemption
- RoHS exemptions: 6(c): Copper alloy containing up to 4 % lead by weight
- ELV status: compliant with exemption
- China RoHS: 50
- REACH Annex XVII substances: Not contained
- REACH ANNEX XIV substances: Not contained
- REACH SVHC substances: Lead
- ECHA SCIP number: 564b7d75-7bf6-4cfb-acb1-2168eb61b675
- California Proposition 65 substances: Lead, Nickel
- Approvals: DNV GL
- UL / CSA: UL 1977 ECBT2.E235076, CSA-C22.2 No. 182.3 ECBT8.E235076
- CE: Yes
- Packaging size: 1
- Net weight: 151.6 g
- Country of origin: Germany
- European customs tariff number: 85389099
- eCl@ss: 27440202
