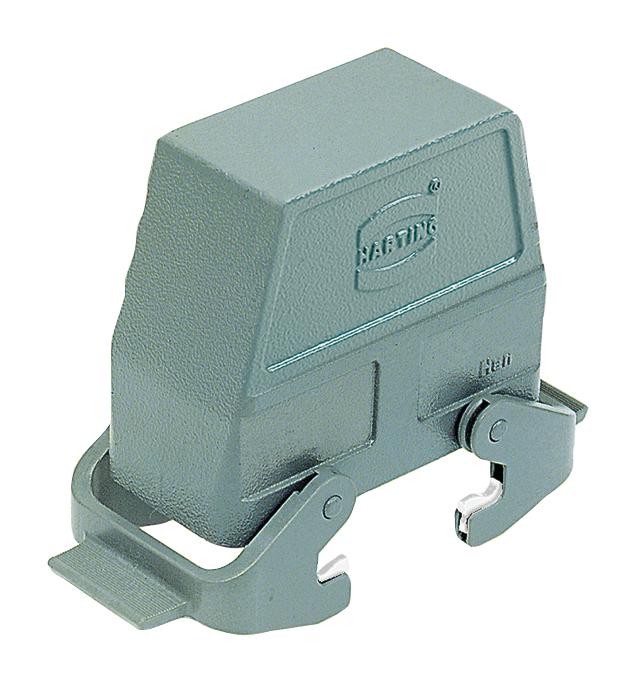

Harting 09300160530 Han B Hood Side Entry
The HARTING Han B Hood Side Entry HC 2 Levers PG 21 is a high-quality hood designed for industrial connector applications. Its aluminum die-cast construction, powder-coated finish (RAL 7037), and double locking lever mechanism provide robust protection and secure cable termination. The hood is rated IP65, IP66, and IP67, ensuring resistance to dust and water ingress. It is suitable for a wide range of industrial environments where reliable and durable connectivity is essential. Compliance with various standards like DNV GL and CE further enhances its suitability for demanding applications. Please refer to the user documentation for complete and up-to-date information.
Harting 09300160530 Han B Hood Side Entry Specifications:
- Part Number: 09 30 016 0530
- Specification: Han B Hood Side Entry HC 2 Levers PG 21
- Series of hoods/housings: Han®B
- Type of hood/housing: Hood
- Type: High construction
- Size: 16 B
- Version: Side entry
- Cable entry: 1x Pg 21
- Locking type: Double locking lever (on the hood)
- Han-Easy Lock®: Yes
- Field of application: Standard hoods/housings for industrial connectors
- Limiting temperature: -40 ... +125 °C
- Degree of protection IEC 60529: IP65, IP66, IP67
- Type rating UL 50 / UL 50E: 4, 4X, 12
- Material (hood/housing): Aluminum die-cast
- Surface (hood/housing): Powder-coated
- Colour (hood/housing): RAL 7037 (dust grey)
- Material (locking): Polycarbonate (PC), Stainless steel
- Colour (locking): RAL 7037 (dust grey)
- Material flammability class UL 94: V-0
- RoHS: compliant
- ELV status: compliant
- China RoHS: e
- REACH Annex XVII substances: Not contained
- REACH ANNEX XIV substances: Not contained
- REACH SVHC substances: Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
- California Proposition 65 substances: Nickel
- Approvals: DNV GL
- CE: Yes
- Packaging size: 1
- Net weight: 272.2 g
- Country of origin: Germany
- European customs tariff number: 85389099
- eCl@ss: 27440202
