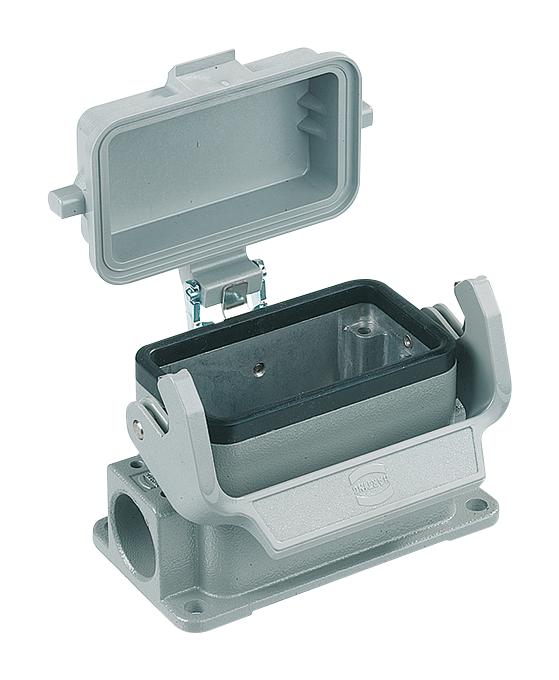

Harting 09300240256 24B Surface Mount Housing
The HARTING Han 24B-HSM1/CM-HC-SL-Pg29 is a high-construction surface mounted housing ideal for standard industrial connector applications. Constructed from aluminum die-cast with a powder-coated finish (RAL 7037), it offers excellent durability and protection. It incorporates a single locking lever mechanism and utilizes a Pg29 cable entry, ensuring a secure and sealed connection. Compliant with RoHS and various industry standards, this housing is suitable for demanding industrial environments requiring robust and reliable connectivity.
Harting 09300240256 24B Surface Mount Housing Specifications:
- Part Number: 09 30 024 0256
- Specification: Han 24B-HSM1/CM-HC-SL-Pg29
- Series of hoods/housings: Han®B
- Type of hood/housing: Surface mounted housing
- Description of hood/housing: With thermo-plastic cover
- Type: High construction
- Size: 24 B
- Version: Side entry
- Cable entry: 1x Pg 29
- Locking type: Single locking lever
- Han-Easy Lock®: Yes
- Field of application: Standard hoods/housings for industrial connectors
- Limiting temperature: -40 ... +125 °C
- Degree of protection: IP65
- Type rating UL: 4X, 12
- Material (hood/housing): Aluminum die-cast
- Surface (hood/housing): Powder-coated
- Colour (hood/housing): RAL 7037 (dust grey)
- Material (seal): NBR
- Material (locking): Polycarbonate(PC), Stainless steel
- Colour (locking): RAL 7037 (dust grey)
- Flammability class: V-0
- RoHS: compliant
- ELV status: compliant
- China RoHS: e
- REACH Annex XVII: Not contained
- REACH ANNEX XIV: Not contained
- REACH SVHC substances: 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol, Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
- California Proposition 65: Nickel, Naphthalene
- Approvals: DNV GL
- UL/CSA: UL 1977 ECBT2.E235076, CSA-C22.2 No. 182.3 ECBT8.E235076
- CE: Yes
- Packaging size: 1
- Net weight: 490 g
- Country of origin: Germany
- European customs tariff number: 85389099
- eCl@ss: 27440202
