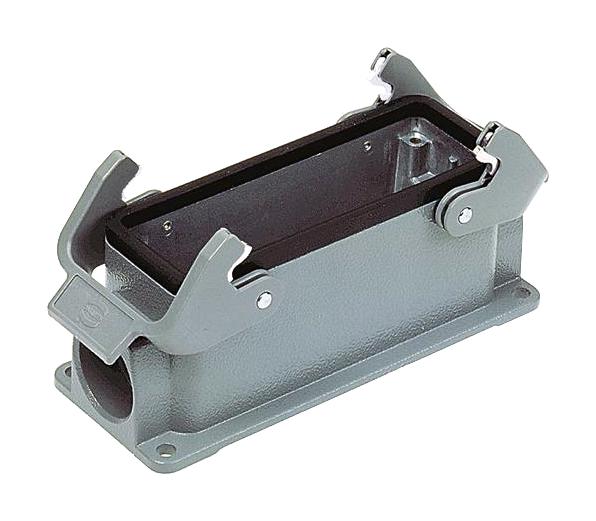

Harting 09300240271 Han B Base Surface Housing
The HARTING Han B Base Surface HC 2 Levers 2 Entries housing is designed for industrial connector applications requiring a durable and reliable connection. Constructed from die-cast aluminum with a powder-coated finish in RAL 7037 (dust grey), it offers excellent protection against environmental factors. The double locking lever mechanism and Han-Easy Lock® feature ensure secure mating, while the side entry design simplifies cable management. With an IP65 degree of protection and UL 4X/12 ratings, this housing is suitable for harsh industrial environments. It supports 2x Pg 29 cable entry and is RoHS compliant, contributing to environmentally responsible designs.
Harting 09300240271 Han B Base Surface Housing Specifications:
- Part Number: 09 30 024 0271
- Specification: Han B Base Surface HC 2 Levers 2 Entries
- Series of hoods/housings: Han®B
- Type of hood/housing: Surface mounted housing
- Type: High construction
- Locking type: Double locking lever
- Han-Easy Lock®: Yes
- Size: 24 B
- Version: Side entry
- Cable entry: 2x Pg 29
- Field of application: Standard hoods/housings for industrial connectors
- Limiting temperature: -40 ... +125 °C
- Degree of protection: IP65
- Type rating UL: 4X, 12
- Material (hood/housing): Aluminium die-cast
- Surface (hood/housing): Powder-coated
- Colour (hood/housing): RAL 7037 (dust grey)
- Material (seal): NBR
- Material (locking): Polycarbonate (PC), Stainless steel
- Colour (locking): RAL 7037 (dust grey)
- Flammability class: V-0
- RoHS: compliant
- ELV status: compliant
- China RoHS: e
- REACH Annex XVII: No
- REACH ANNEX XIV: No
- REACH SVHC substances: Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
- Approvals: DNV GL
- UL CSA: UL 1977 ECBT2.E235076, CSA-C22.2 No. 182.3 ECBT8.E235076
- CE: Yes
- Packaging size: 1
- Net weight: 444 g
- Country of origin: Germany
- Customs tariff number: 85389099
- eCl@ss: 27440202
