Harting 09300240296 Han B Base Cover Pg29

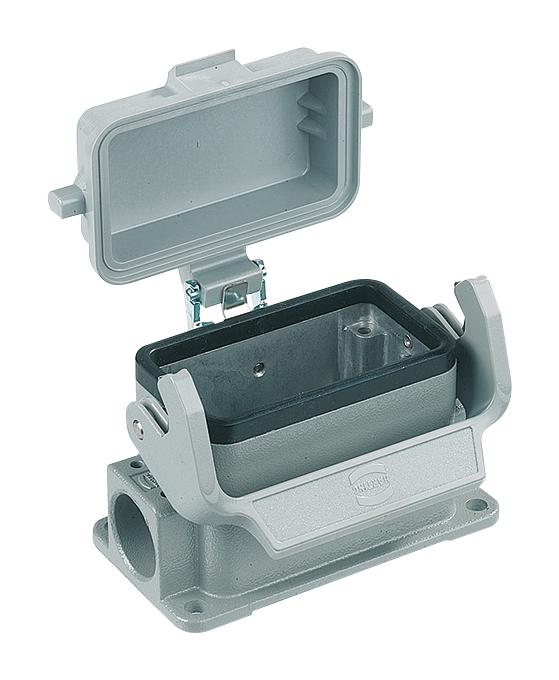

The HARTING Han B Base SM HC plastic cover Pg29 is a high-quality, surface-mounted housing designed for industrial connectors. Constructed with an aluminum die-cast body and a thermo-plastic cover, this housing offers excellent protection against environmental factors. It features a single locking lever for secure cable attachment and side entry for easy cable management. The housing is suitable for a wide range of industrial applications, including machinery, automation systems, and power distribution, where reliable and robust connectivity is essential. Its powder-coated finish provides enhanced durability and corrosion resistance, ensuring long-term performance in demanding environments.
Harting 09300240296 Han B Base Cover Pg29 Specifications:
- Part Number: 09 30 024 0296
- Specification: Han B Base SM HC plastic cover Pg29
- Series of hoods/housings: Han®B
- Type of hood/housing: Surface mounted housing
- Description of hood/housing: With thermo-plastic cover
- Type: High construction
- Cable entry: 2x Pg 29
- Locking type: Single locking lever
- Han-Easy Lock®: Yes
- Field of application: Standard hoods/housings for industrial connectors
- Limiting temperature: -40 ... +125 °C
- Degree of protection: IP65
- Type rating UL: 4X, 12
- Material (hood/housing): Aluminium die-cast
- Surface (hood/housing): Powder-coated
- Colour (hood/housing): RAL 7037 (dust grey)
- Material (seal): NBR
- Material (locking): Polycarbonate (PC), Stainless steel
- Colour (locking): RAL 7037 (dust grey)
- Flammability class: V-0
- RoHS: compliant
- ELV status: compliant
- China RoHS: e
- REACH Annex XVII: Not contained
- REACH ANNEX XIV: Not contained
- REACH SVHC substances: 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol, Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
- California Proposition 65: Nickel, Naphthalene
- Approvals: DNV GL
- UL CSA: UL 1977 ECBT2.E235076, CSA-C22.2 No. 182.3 ECBT8.E235076
- CE: Yes
- Packaging size: 1
- Net weight: 466.34 g
- Country of origin: Germany
- Customs tariff number: 85389099
- eCl@ss: 27440202
