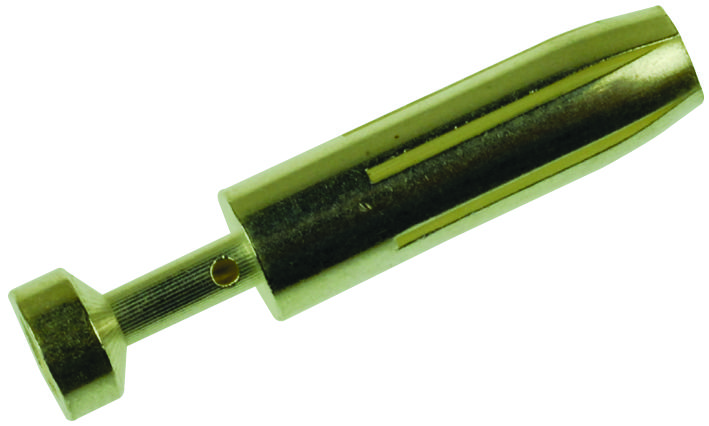

Harting 09330006227 Han E Crimp Contact
The HARTING Han E-F-Crimp Contact Ag 0.14-0.37mm² is a crucial component for establishing reliable electrical connections in industrial environments. Constructed from silver-plated copper alloy, this crimp contact ensures excellent conductivity and corrosion resistance. Designed for use with Han E® connectors, it accommodates conductor cross-sections ranging from 0.14 to 0.37 mm² (AWG 26-22), supporting a maximum operating current of 16A. Its robust design guarantees a minimum of 500 mating cycles, making it suitable for demanding applications in automation, power distribution, and heavy machinery. The contact is RoHS compliant with exemptions for copper alloy containing up to 4% lead by weight. Please refer to the complete user documentation for detailed specifications and application guidelines.
Harting 09330006227 Han E Crimp Contact Specifications:
- Part Number: 09 33 000 6227
- Specification: Han E-F-Crimp Contact Ag 0.14-0.37mm²
- HARTING eCatalogue: https://b2b.harting.com/09330006227
- Category: Contacts
- Series: Han E®
- Type of contact: Crimp contact
- Gender: Female
- Contact identification: No groove
- Manufacturing process: Turned contacts
- Conductor cross-section: 0.14 ... 0.37 mm²
- AWG: 26 ... AWG 22
- Operating current: ≤16 A
- Contact resistance: ≤1 mΩ
- Stripping length: 7.5 mm
- Mating cycles: ≥500
- Material (contacts): Copper alloy
- Surface (contacts): Silver plated
- RoHS: compliant with exemption
- RoHS exemptions: 6(c): Copper alloy containing up to 4 % lead by weight
- ELV status: compliant with exemption
- China RoHS: 50
- REACH Annex XVII substances: Not contained
- REACH ANNEX XIV substances: Not contained
- REACH SVHC substances: Lead
- ECHA SCIP number: b51e5b97-eeb5-438b-8538-f1771d43c17d
- California Proposition 65 substances: Lead
- Packaging size: 100
- Net weight: 1.2 g
- Country of origin: Germany
- European customs tariff number: 85366990
- eCl@ss: 27440204
