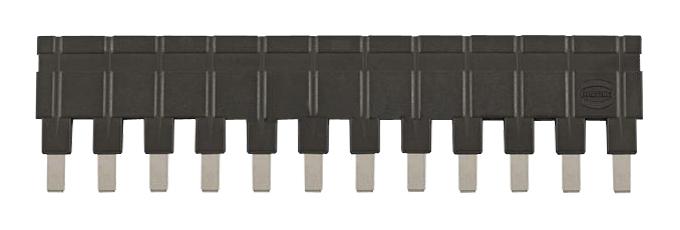

Harting 09330009862 ES Press Connector
The HARTING Han ES Press connector is designed for efficient and reliable connections in industrial environments. Its unique features, such as easy contact bridging with plug-in jumpers and rapid termination technology, significantly reduce assembly time and improve process reliability. The connector's compatibility with other Han connector families and its suitability for control cabinets make it a versatile solution for a wide range of applications. It offers zero insertion force (ZIF) for conductors and jumpers for potential multiplication, ensuring a secure and efficient connection.
Harting 09330009862 ES Press Connector Specifications:
- Features: Easy bridging functionality of contacts by means of plug-in jumpers, rapid termination technology, mating compatible to Han E, ES and ESS product families, integrated opening for measuring probe
- Description: Conductor assembly involves pressing the blue press button, audible and tactile snap-in, conductors connectable with and without ferrules, zero insertion force, jumpers for potential multiplication, suitable for hoods and housings
- Material (power contacts): copper alloy
- Surface (power contacts): silver plated
- Contact resistance: ≤ 3 mΩ
- Stripping length: 5.0 mm
- Max. insulation diameter: 9 ... 11 mm
- Material (jumpers): polyamide
- Surface (jumpers): tin plated
- Contact resistance (jumpers): ≤ 1.0 mΩ
- Rated current: 16 A
- Rated voltage: 500 V
- Rated impulse voltage: 6 kV
- Pollution degree: 3
- Insulation resistance: ≥ 10[10] Ω
- Limiting temperatures: -40 °C ... +125 °C
- Flammability: V 0
- Mating cycles: ≥ 500
- Material (insulation): polycarbonate
