Harting 09400030950 Bulkhead Housing

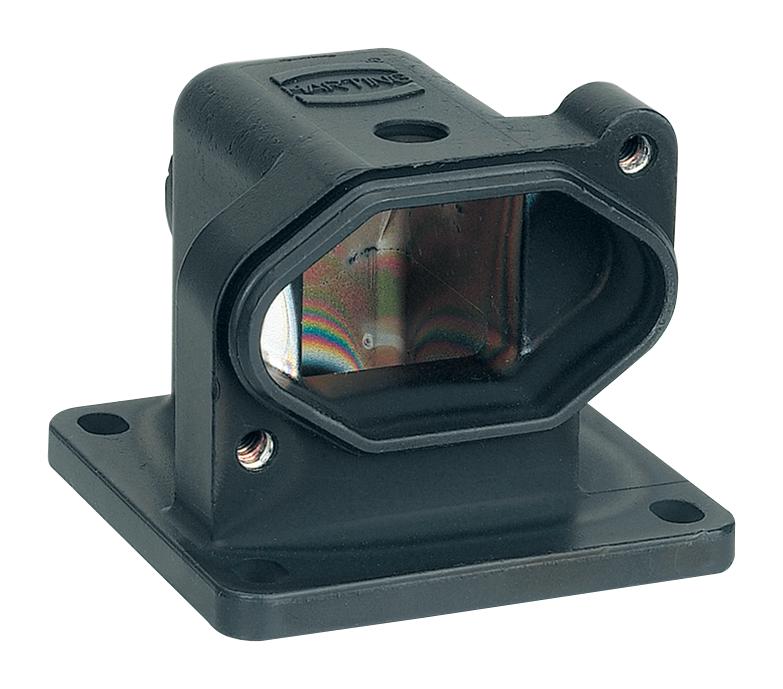

The Han 3HPR angled housing is a robust, zinc die-cast bulkhead-mounted enclosure designed for harsh outdoor environments. It features an open bottom, feed-through hole for fixing screws, and a screw locking mechanism. The housing offers high protection ratings of IP65, IP68, and IP69/IPX9K according to IEC 60529 and ISO 20653, ensuring durability in extreme conditions from -40°C up to +125°C. Suitable for industrial applications, it provides reliable sealing with a seal screw, delivering excellent mechanical protection and environmental resistance.
Harting 09400030950 Bulkhead Housing Specifications:
- Material: Zinc die-cast
- Color: RAL 9005 jet black
- Surface: Black chrome coating
- Protection Level: IP65, IP68, IP69/IPX9K
- Temperature Range: -40°C to +125°C
- Locking Type: Screw locking, 2 Nm torque
- Size: 4 x 12 mm feed-through holes, open bottom
- Material (seal): NBR
- RoHS, ELV compliant
- Approvals: UL 1977, CSA-C22.2 No. 182.3, DNV GL
- Net weight: Not specified, typical for bulkhead housings
- Country of Origin: Germany
- ECLASS: 85389099
Buy the Buy HARTING Han 3HPR Part Number 09400030950 Online
Enhance your outdoor projects with the HARTING Han 3HPR angled housing, designed for extreme environments. Made from durable zinc die-cast material, it offers high IP ratings, including IP69K, ensuring superior protection against dust, water, and mechanical impacts. Equipped with screw locking and a feed-through for easy fixing, it withstands temperatures from -40°C to +125°C. Its robust construction makes it ideal for harsh industrial conditions, providing enhanced safety and longevity for critical electronic and control systems. Purchase online now for quick, reliable delivery.
Order your HARTING Series09400030950 angled housing today and ensure reliable protection for your outdoor industrial equipment.
