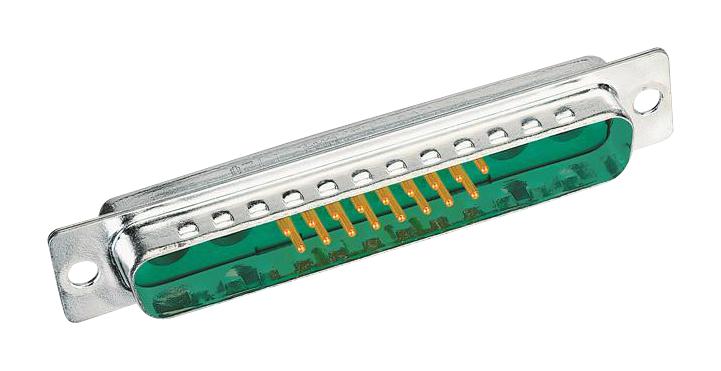

Harting 09692117072 D-Sub Connector
This product is a versatile D-Sub connector system designed for PCB and cable applications, supporting signal, power, coaxial, high voltage, and pneumatic contacts. It features fully shielded shells to reduce EMI/RFI leakage, with various contact types including solder cup, crimp, and special contacts rated up to 40A. Compatible with SMC reflow soldering for PCB mounting and offering blind mate and hot-plug features. It is suitable for high-performance industrial environments, complying with DIN 41652 and MIL-C standards, with options for crimping and soldering termination processes.
Harting 09692117072 D-Sub Connector Specifications:
- Number of contacts: 2, 3, 5, 7, 8, 9, 11, 13, 17, 21, 24, 25, 27, 36
- Working current: 5 A for signal contacts, up to 40 A for power contacts
- Temperature range: -55°C to +125°C
- Shell material: Plated steel with thermoplastic resin insulators (UL 94-VO, green or black)
- Contact plating: 0.76 μm or 0.2 μm Au over Ni, with special contacts up to 1.3 μm Au
- Signal contacts: Solder or crimp termination, pitch 2.84 mm or 2.54 mm, plated with 0.76 μm Au
- Power contacts: Solder or press-in termination, rated up to 40A, plating up to 1.3 μm Au
- Coaxial contacts: Crimp or solder termination, impedance 50Ω to 75Ω, plated with 1.3 μm Au inner conductor
- Pneumatic contacts: Inner diameter options 2mm to 4mm, compatible with PU-2, PU-3, PU-4 tubes
- Compliance: DIN 41652, MIL-C-24 308 standards, temperature stability, high mating cycles (>500)
Buy the Buy HARTING D-Sub Connector Part Number 09692117072 Online
Purchase the HARTING D-Sub connector part number 09692117072 online today to ensure secure connections in PCB and cable assemblies. Featuring a robust shielded shell, it supports signal, power, coaxial, and pneumatic contacts with high current ratings up to 40A. Its versatile design includes solder cup and crimp terminations, conforming to DIN 41652 standards, with options for blind mating, hot plug-in, and use in harsh environments. Perfect for industrial automation, electronics, and communication systems needing reliable interconnect solutions.
Buy HARTING D-Sub connector part number 09692117072 now and experience unmatched reliability and performance in industrial signal and power applications.
Frequently Asked Questions
Where can I buy Harting 09692117072?
You can click on the BUY or RFQ button to purchase 09692117072 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 09692117072?
You can download the 09692117072 datasheet or visit the Harting website for support.
Who is the manufacturer of 09692117072?
Harting
