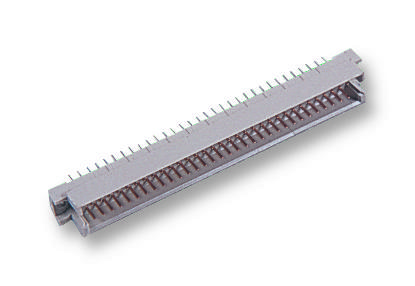

Harting 09731646903 industrial connector
The HARTING DIN Signal male connector straight is a high-quality industrial connector designed for reliable PCB connections in various electronic and automation systems. It features plated through holes with copper and tin plating for excellent conductivity and corrosion resistance, suitable for press-in, solder, or wirewrap terminations. The connector supports up to 96 contacts with a maximum current of 2A at 20°C and a working temperature range from -40°C to +105°C. It complies with RoHS and UL standards, ensuring safe and eco-friendly operation, with robust design for high mating cycle durability and precise assembly suited to control and electronic applications.
Harting 09731646903 industrial connector Specifications:
- Material: Copper alloy contact with Au over PdNi over Ni plating, PBT insulating body with grey RAL 7032 color
- Contact Resistance: Max. 5nOhm at 1.00 – 110mm plated hole
- Temperature Range: -40°C to +105°C, working current 2A at 20°C
- Plating: Sn over Ni for solder, Ni for press-in & wirewrap; Au over PdNi over Ni contact zone
- Insulation: UL 94-V0, IEC 60664-1 group la, CTI < 400
- Dimensions & Clearance: Mating cycle up to 500 (IEC 60603-2), max. 96 contacts, each with a minimum clearance of 12mm
- Soldering & Assembly: Compatible with lead-free soldering, recommended use of HARTING press-in tools
- RoHS & UL compliant: Yes, UL file 102079, no hot plugging
- Operating Conditions: Suitable for PCB surfaces with plated through holes 0.94-105mm, hole diameter 0.025mm, working temperature up to 105°C
- Design: Straight type, with clearances and creepage distances of at least 12mm, 6 to 96 poles
- Durability: Up to 500 mating cycles, supported by IEC standards, with protection during soldering processes
Buy the Buy HARTING DIN Signal Male Connector Straight Part Number 09731646903 Online
Purchase the HARTING DIN Signal male connector straight online today. This reliable connector supports up to 96 contacts, features plated through holes, and is suitable for press-in, solder, or wirewrap terminations. Made with copper alloy contacts plated with Au over PdNi over Ni, it withstands temperatures from -40°C to +105°C and allows up to 500 mating cycles. RoHS and UL compliant, it guarantees safe, environmentally friendly, and durable electrical connections in control systems, automation, and electronic applications. Perfect for robust industrial environments.
Get HARTING 09731646903 today—built for precision and long-lasting durability in industrial PCB connections.
Frequently Asked Questions
Where can I buy Harting 09731646903?
You can click on the BUY or RFQ button to purchase 09731646903 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 09731646903?
You can download the 09731646903 datasheet or visit the Harting website for support.
Who is the manufacturer of 09731646903?
Harting
