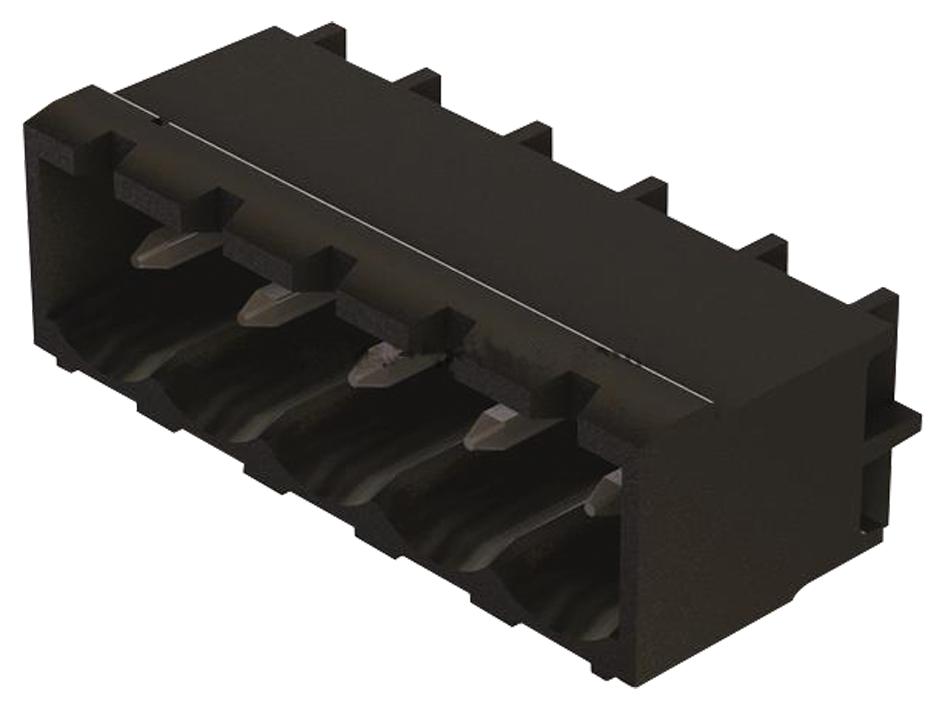

Harting 14120316002000 Industrial Male Connector
The har-flexicon male connector is a horizontal type designed for versatile electrical connections in automation and industrial applications. Featuring contact pitches of 3.5 mm, 3.81 mm, 5.00 mm, and 5.08 mm, it supports 2 to 25 poles with rated voltages up to 600 V and currents of 1A to 15A. Made from PA/PPA with a UL 94-VO classification, the connector ensures high insulation resistance, low contact resistance, and RoHS compliance. Its copper alloy contacts are Sn-plated, offering reliable performance under vibration and varying temperatures from -50°C to 110°C.
Harting 14120316002000 Industrial Male Connector Specifications:
- Contact pitches: 3.5 mm, 3.81 mm, 5.00 mm, 5.08 mm
- Number of contacts: 2-25 poles, 219 poles, 2-12 poles
- Rated voltage: 300 V, 600 V, 150 V, 250 V, 750 V depending on model
- Rated current: 1A to 15A
- Rated surge voltage: 25 kV
- Contact resistance: max 15 mOhm
- Insulation resistance: min 10^10 Ohm at 500 V DC
- Temperature range: -50°C to 110°C
- Material: PA/PPA, black, UL 94-VO, IEC CTI > 600
- Contact material: Copper alloy, Sn-plated
- Termination technology: THR/SMC Reflow
- Vibration resistance: 10-150Hz, 0.35mm, 5g, 2h per axis
- RoHS compliant, UL listed file 314677
Buy the HARTING Series Har-Flexicon Male Connector: 14120316002000
Purchase the HARTING har-flexicon male connector online today for reliable, high-performance connections ideal for automation, control systems, and industrial equipment. Designed with durable materials and multiple contact configurations, this connector supports voltages up to 600 V and currents up to 15A. Its robust construction includes UL rated, Sn-plated copper alloy contacts and a temperature range of -50°C to 110°C, ensuring excellent resistance to vibration, vibration, and environmental conditions, making it a dependable choice for demanding industrial applications.
Get HARTING har-flexicon male connector today—built for precision, reliability, and long-lasting durability in industrial automation.
Frequently Asked Questions
Where can I buy Harting 14120316002000?
You can click on the BUY or RFQ button to purchase 14120316002000 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 14120316002000?
You can download the 14120316002000 datasheet or visit the Harting website for support.
Who is the manufacturer of 14120316002000?
Harting
