Harting 14120416001000 Industrial Connector
The har-flexicon male connector is a vertical SMC connector designed for versatile industrial applications. It features robust contact materials, plating zones with tin, and complies with RoHS standards. Available in various configurations with 2-25 poles and contact pitches of 3.50/3.81 mm, 5.00 mm, and 5.08 mm. It supports rated voltages up to 600 V, currents of 5 A, and withstands temperature ranges from -40°C to 105°C. The connector is suitable for use with reflow or THR/SMC termination technology, ensuring reliable electrical connections in demanding environments.
Harting 14120416001000 Industrial Connector Specifications:
- Contact pitch: 3.50/3.81 mm, 5.00 mm, 5.08 mm
- No. of contacts: 2-25 poles
- Rated Voltage: up to 600 V
- Rated surge voltage: 25 kV
- Rated current: 5 A
- Contact resistance: max 15 mOhm
- Insulation resistance: min 10^9 Ohm (500 V)
- Temperature range: -40°C to 105°C
- Material: PA/PPA, black color, UL 94-V0
- Contact material: Copper alloy, plated with Sn
- Termination technology: Reflow, THR/SMC
- Vibration resistance: 10-150 Hz, 0.35 mm, 5g, 2h each axis
- RoHS compliant, UL certified (file 314677)

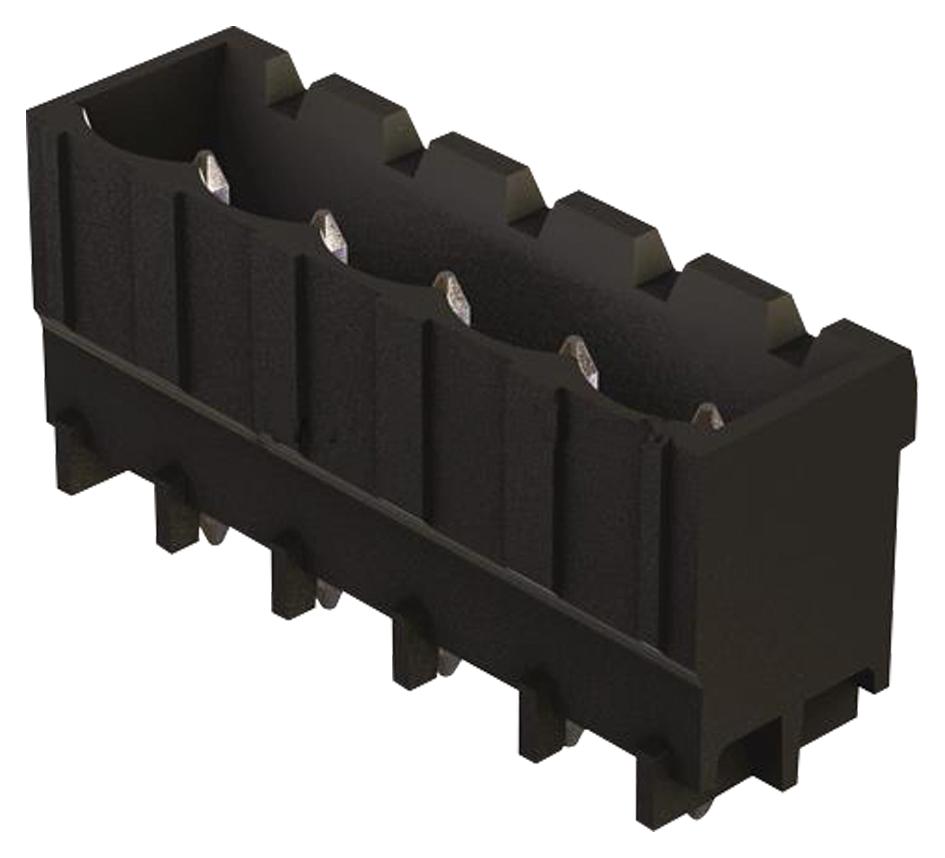

Buy the HARTING Series Har-Flexicon Male Connector: 14120416001000
Discover the high-quality HARTING Har-Flexicon male connector, designed for robust and reliable electrical connections in industrial environments. Featuring versatile contact pitches, high voltage and current ratings, and RoHS compliance, this connector ensures optimal performance across various applications. Its durable materials, tin-plated contact zones, and compliance with UL standards make it ideal for demanding conditions. Easily available for online purchase, this connector provides a dependable solution for engineers and technicians seeking precision, safety, and long-term durability in industrial electrical systems.
Get HARTING Har-Flexicon 14120416001000 today—built for precision and long-lasting durability in industrial applications.
Frequently Asked Questions
Where can I buy Harting 14120416001000?
You can click on the BUY or RFQ button to purchase 14120416001000 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 14120416001000?
You can download the 14120416001000 datasheet or visit the Harting website for support.
Who is the manufacturer of 14120416001000?
Harting
