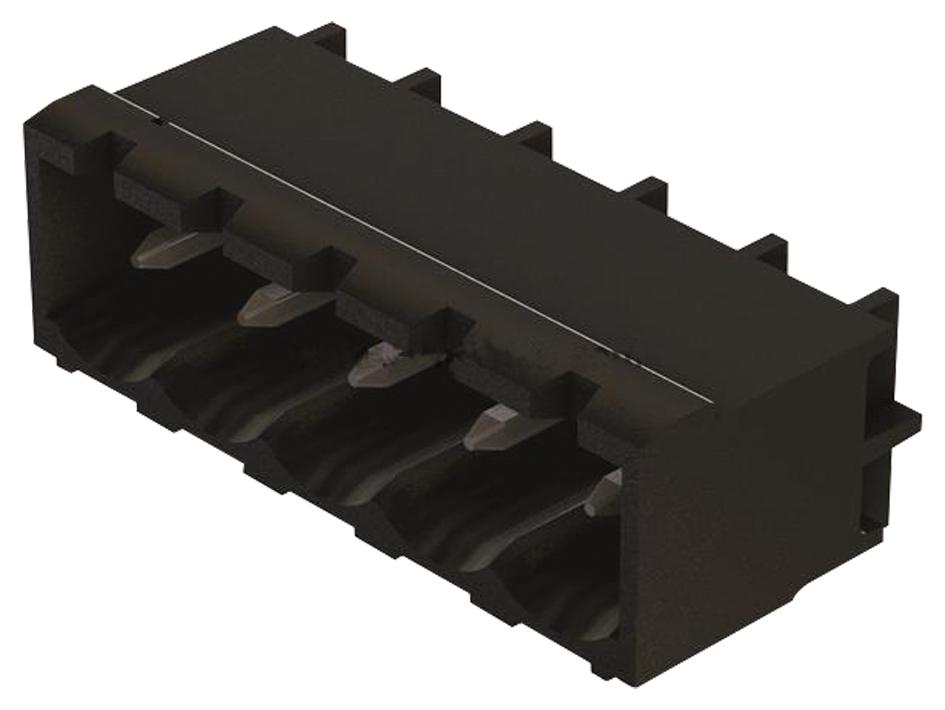

Harting 14120416002000 Male Connector
The har-flexicon male connector is a reliable and versatile horizontal connector suitable for various industrial and electronic applications. Featuring contact pitches of 3.5 mm, 3.81 mm, 5.00 mm, and 5.08 mm, it supports 2 to 25 poles with rated voltages up to 600 V and currents of 1A to 15A. Made from durable PA/PPA material with Sn-plated copper alloy contacts, it offers low contact resistance, high insulation resistance, and compliance with RoHS standards. Designed for ease of insertion and withdrawal, it is ideal for automation, control systems, and electronic modules.
Harting 14120416002000 Male Connector Specifications:
- Contact pitches: 3.5 mm, 3.81 mm, 5.00 mm, 5.08 mm
- Number of poles: 2-25, 2-12, 6-20
- Rated voltage: 300 V, 600 V
- Rated surge voltage: 25 kV
- Working current: 1A, 15A, 50A
- Contact resistance: max. 15 mOhm
- Insulation resistance: min. 10^10 Ohm at 500 V DC
- Temperature range: -40°C to +110°C
- Material: PA/PPA, contact zone: Sn-plated copper alloy
- Color: Black
- UL classification: UL 94-VO
- Certifications: UL file 314677
- Vibration resistance: 10-150Hz, 0.35mm, 5g for 2h
- RoHS compliant
- Termination: THR/SMC Reflow
- Insertion force: max. 3 N
- Withdrawal force: min. 1.5 N
- Hot plugging: No
- Control and test procedures: DIN IEC 60512-5
Buy the HARTING Series Har-Flexicon Male Connector: 14120416002000
Purchase the HARTING Series Har-Flexicon Male Connector online today to ensure reliable connections in your control and automation systems. This connector offers versatile contact pitches of 3.5 mm, 3.81 mm, 5.00 mm, and 5.08 mm, supporting 2 to 25 poles with rated voltages up to 600 V and currents of up to 15A. Made from durable PA/PPA with Sn-plated copper alloy contacts, it ensures low contact resistance, high insulation resistance, and compliance with RoHS standards. Easy to use for quick assembly and maintenance, this connector is perfect for industrial applications requiring high reliability and safety.
Order your HARTING Series Har-Flexicon Male Connector today and give your electronic and industrial projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy Harting 14120416002000?
You can click on the BUY or RFQ button to purchase 14120416002000 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 14120416002000?
You can download the 14120416002000 datasheet or visit the Harting website for support.
Who is the manufacturer of 14120416002000?
Harting
