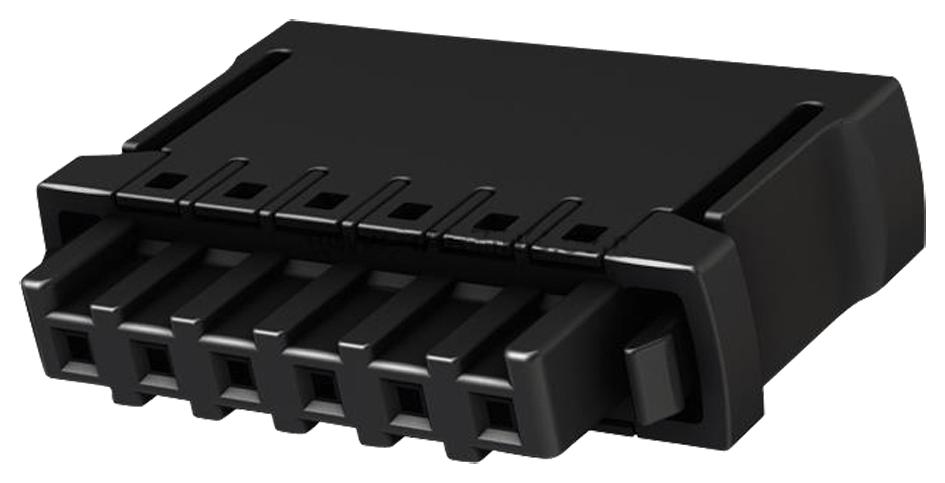

Harting 14310713101000 Female Connector
The har-flexicon 2.54 female connector is a high-quality electrical component designed for industrial applications, featuring a push-in spring cage termination technology and robust construction. It supports a conductor cross section range from 0.2 mm² to 5 mm² and is suitable for solid and stranded conductors with ferrules. With a rated voltage of 160V and test voltage of 25kV, it ensures reliable electrical connections. The connector's materials include an LCP insulator and copper alloy contacts, and it withstands temperatures from -A0°C to 125°C. It is RoHS compliant and ideal for secure, vibration-resistant, and hot-pluggable connections in demanding environments.
Harting 14310713101000 Female Connector Specifications:
- Conductor cross section: solid 0.2 mm² to 5 mm², stranded 0.2 mm² to 5 mm², with ferrule 0.25 mm² to 0.34 mm²
- Rated voltage: 160V, test voltage: 25kV
- Contact resistance: max. 20 nΩ, insulation resistance: min. 10 GΩ
- Number of contacts: 2-12 poles, contact pitch: 2.54 mm
- Working current: 7A at 10°C, derating according to IEC 60512-5
- Material: LCP (liquid crystalline polymer), glass fiber reinforced 30%, black color, UL 94-VO
- Contact material: Copper alloy, tin-plated contacts and termination zones
- Vibration resistance: 10-150Hz, 0.35mm, 5g for 2 hours
- Insertion force: max. 5 N, withdrawal force: min. 1 N per contact
- Creepage distance: 1.6 mm, clearance: 15 mm, operating temperature: -A0°C to 125°C
- Number of mating cycles: 10, RoHS compliant, UL pending, no hot plugging
Buy the HARTING 14310713101000 – Reliable Female Connector for Industrial Applications
Discover the high-quality female connector designed for industrial electronics. With a 2.54 mm pitch, supporting conductors from 0.2mm² to 5mm², rated at 160V and test voltage of 25kV, this connector offers exceptional reliability. Its push-in spring cage terminals ensure quick, secure assembly, while the robust insulating material and copper alloy contacts provide excellent durability. RoHS compliant for eco-friendly applications, it withstands temperatures from -A0°C to 125°C and is suitable for vibration-heavy environments. Purchase online now to secure dependable, long-lasting connections for your projects.
Order your HARTING 14310713101000 series female connector today and ensure secure, vibration-resistant electrical connections for demanding industrial projects.
Frequently Asked Questions
Where can I buy Harting 14310713101000?
You can click on the BUY or RFQ button to purchase 14310713101000 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 14310713101000?
You can download the 14310713101000 datasheet or visit the Harting website for support.
Who is the manufacturer of 14310713101000?
Harting
