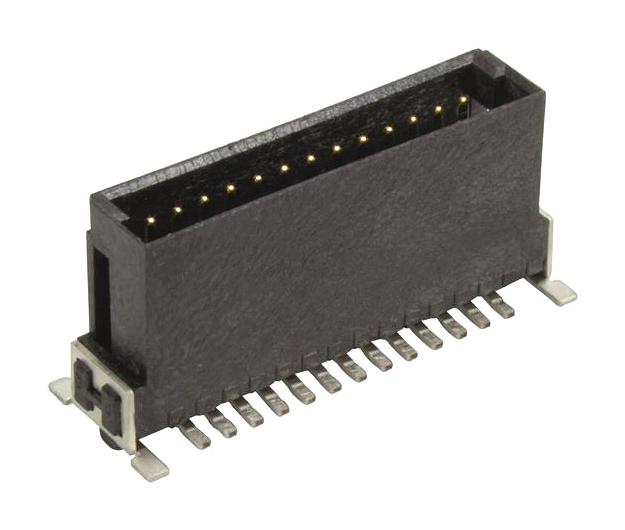

Harting 15130162601000 Straight Male Connector
The har-flex straight male connector is a RoHS-compliant, solderable connector designed for reliable electrical connections in electronic assemblies. Suitable for lead-free SAC / SnNi solder, it supports multiple stacking heights of 1.75mm, 3.25mm, and 4.85mm with a range of pole options from 6 to 100. It features high insulation resistance, low contact resistance, and a working temperature range of -55°C to +125°C. The connector is compatible with various PCB pad surfaces including HAL, NiAu, and Immersion Sn, providing durable, high-performance connections for industrial applications.
Harting 15130162601000 Straight Male Connector Specifications:
- Number of contacts: 6 to 100 (even numbers)
- Contact spacing: 1.27mm x 1.27mm
- Test Voltage: 500V
- Contact resistance: <25 mOhm
- Insulation resistance: see derating diagram
- Working current according to IEC 60512 at 70°C: see specifications
- Working temperature range: -55°C to +125°C
- Termination technology: SMT
- Reflow processing temperature: >217°C for min. 150s
- PCB pad plating: HAL, NiAu, Immersion Sn
- Insulator Material: LCP (liquid crystalline polymer), UL94-VO, black
- Material group: Illa (175 < CTI < 400)
- Contact material: Copper alloy with Sn, Au over PdNi plating
- Mating cycles: PL1 - 500, PL2 - 250
- Hold-downs: solderable with specified stencil apertures
- Coplanarity of contacts: 6 to 80 pin ±0.1mm, 82 to 100 pin ±0.145mm
Buy the HARTING Series Har-Flex Straight Male Connector: 15130162601000
Purchase the HARTING har-flex straight male connector online today for high-quality, RoHS-compliant electrical connections. Designed for broad industrial applications, it offers excellent contact resistance, high insulation resistance, and broad compatibility with PCB surfaces like HAL, NiAu, and Immersion Sn. Its multiple stacking heights of 1.75mm, 3.25mm, and 4.85mm ensure flexibility for different assembly requirements. Benefit from reliable reflow soldering, extensive mating cycles, and exceptional durability—ideal for precise, high-performance electronic systems. Secure your supply now!
Buy HARTING har-flex straight male connector now and experience unmatched reliability and performance in your electronic assemblies.
Frequently Asked Questions
Where can I buy Harting 15130162601000?
You can click on the BUY or RFQ button to purchase 15130162601000 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 15130162601000?
You can download the 15130162601000 datasheet or visit the Harting website for support.
Who is the manufacturer of 15130162601000?
Harting
