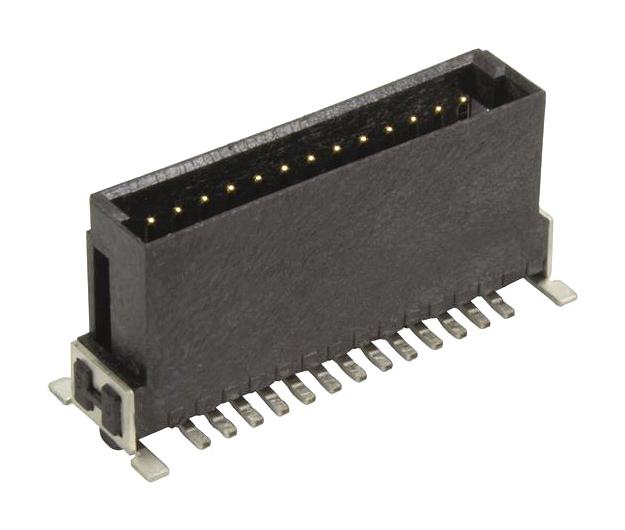

Harting 15130682601000 electronic connector
The har-flex straight male connector is a RoHS-compliant, solderable electronic component suitable for PLC systems and industrial automation. Designed for professional soldering with lead-free SAC or SnNi solder and compatible with leaded solder like SnPb40, it features high insulation resistance and low contact resistance. This connector supports a working temperature range from -55°C to +125°C and has a stacking height options of 1.75mm, 3.25mm, or 4.85mm, accommodating 6 to 100 poles. Its robust build ensures reliable performance in demanding industrial applications, featuring multiple contact arrangements, compliant material constructions, and tested coplanarity for consistent contact quality.
Harting 15130682601000 electronic connector Specifications:
- Number of contacts: 6 to 100 poles
- Contact spacing: 1.27mm x 1.27mm
- Test Voltage: 500V
- Contact resistance: <25 mOhm
- Insulation resistance: >10^4 Ohms
- Working current: see derating diagram
- Working temperature range: -55°C to +125°C
- Termination technology: SMT
- Reflow processing temperature: >217°C for min. 150s
- PCB pad plating: HAL, NiAu, Immersion Sn
- Material: Liquid crystalline polymer (LCP), black, UL94-VO
- Insulator performance: Illa (175 < CTI < 400)
- Contact material: Copper alloy, Sn, Au over PdNi
- Mating cycles: PL1: 500, PL2: 250
- Voltage: 100V / 150V (depending on installation category)
- Coplanarity of contacts: 0.1mm for 6-80 pin, 0.145mm for 82-100 pin
Buy the Buy HARTING Har-Flex Straight Male Connector Part Number 15130682601000 Online
Order the HARTING Har-Flex straight male connector online today for robust, RoHS-compliant performance in industrial environments. Designed for easy soldering with lead-free or leaded solder, this connector ensures high electrical reliability with low contact resistance and excellent insulation resistance. Featuring a versatile stacking height array from 1.75mm to 4.85mm and supporting up to 100 poles, it is suitable for complex automation systems. Its tested coplanarity and high-quality materials guarantee consistent, durable connections for demanding applications. Easily available for quick procurement, this connector enhances assembly efficiency and operational reliability in industrial control panels and automation setups.
Buy HARTING Har-Flex straight male connector with multiple stacking heights now and experience unmatched reliability and performance in industrial automation.
Frequently Asked Questions
Where can I buy Harting 15130682601000?
You can click on the BUY or RFQ button to purchase 15130682601000 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 15130682601000?
You can download the 15130682601000 datasheet or visit the Harting website for support.
Who is the manufacturer of 15130682601000?
Harting
