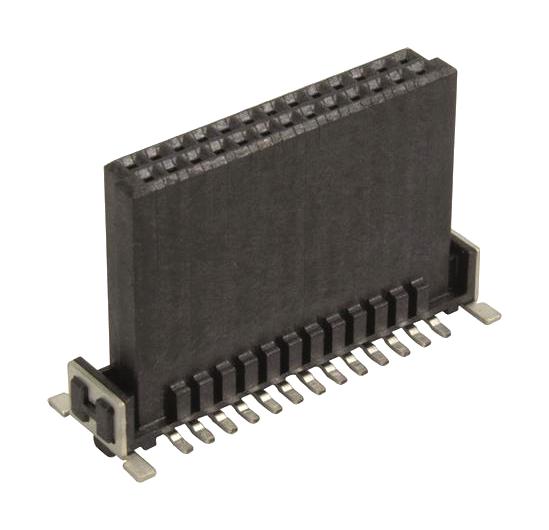

Harting 15230122601000 Flexible Female Connector
The har-flex straight female connector offers reliable, RoHS-compliant solder connections suitable for industrial applications. Designed for environments requiring durable, high-density connectivity, it features stacking heights of 6.25mm, 9.05mm, and 13.65mm, with configurations from 6 to 100 poles, all even numbers. Made with liquid crystalline polymer insulators and copper alloy contacts plated with Sn and Au over PdNi, it ensures excellent electrical performance, high mating cycle durability, and compatibility with lead-free solder processes. Ideal for PCB mounting in automation and industrial device setups, it withstands temperatures from -55°C to +125°C, with a maximum test voltage of 500V and a contact resistance below 25 mOhm.
Harting 15230122601000 Flexible Female Connector Specifications:
- Number of contacts: 6 to 100 poles (even numbers only)
- Contact spacing: 1.27mm x 1.27mm
- Stacking heights: 6.25mm, 9.05mm, 13.65mm
- Temperature Range: -55°C to +125°C
- Working voltage: 500V
- Test Voltage: 500V
- Contact resistance: < 25 mOhm
- Mating cycles: 150 (PL1), 250 (PL2)
- Material: Liquid crystalline polymer insulator, black UL94-VO
- Contact material: Copper alloy
- Plating: Sn (Termination zone), Au over PdNi (Sliding side)
- Solder process: Compatible with lead-free SAC / SnNi and SnPb40
- Reflow temperature: > 217°C for 150s, > 240°C for 30s
- Insulation and creepage distance: Designed per IEC standards
- Insertion and withdrawal force: ~0.5N/contact
- Mating cycles durability: 250 for PL1, 125 for PL2
- Compatibility with PCB pad surfaces: HAL, NiAu, Immersion Sn
- Certifications: RoHS, UL, CSA, IEC 60664-1
- Coplanarity: 0.1mm to < 0.145mm depending on pin count
Buy the HARTING har-flex connector – Reliable flexible female connector for Industrial Applications
Purchase the HARTING har-flex flexible female connector online today and experience high-density, reliable connectivity designed for industrial automation, control systems, and PCB applications. This RoHS-compliant connector supports lead-free soldering, withstands temperatures from -55°C to +125°C, and offers excellent electrical performance with low contact resistance. With multiple stacking heights, high mating cycle durability, and compatibility with various PCB pad surfaces, it ensures long-term reliable operation. Secure your industrial setup with this durable connector—order now for fast delivery and unbeatable quality.
Get HARTING har-flex connector today—built for precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy Harting 15230122601000?
You can click on the BUY or RFQ button to purchase 15230122601000 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 15230122601000?
You can download the 15230122601000 datasheet or visit the Harting website for support.
Who is the manufacturer of 15230122601000?
Harting
